Rabel 720 Super Thermal
Legacy Casement System
Rabel 720 Super Thermal has been engineered without compromise to make high quality super thermal hinged doors and windows with a tight budget. Its sash is characterised by triple joining means to withstand acoustic glass having a weight up to 150Kg per sash. It is available in simple hinged typologies, tilt only, tilt and turn and many other not so common.
It is available in two aesthetic lines, namely sofline and flat design to accommodate classical and modern architecture. Having a frame thermal performance Uf >=1.6 W/(m2K) and a fabrication thermal performance Uw of up to 1.2 W/(m2K) makes it is suitable for use in passive houses to reach zero energy consumption. It comes with a burglary resistant multipoint perimeter locking system and a choice of safety and acoustic glass.
Rabel 720 Super Thermal has been engineered without compromise to make high quality super thermal hinged doors and windows with a tight budget. Its sash is characterised by triple joining means to withstand acoustic glass having a weight up to 150Kg per sash. It is available in simple hinged typologies, tilt only, tilt and turn and many other not so common.
It is available in two aesthetic lines, namely sofline and flat design to accommodate classical and modern architecture. Having a frame thermal performance Uf >=1.6 W/(m2K) and a fabrication thermal performance Uw of up to 1.2 W/(m2K) makes it is suitable for use in passive houses to reach zero energy consumption. It comes with a burglary resistant multipoint perimeter locking system and a choice of safety and acoustic glass.
Technical Specifications
| Technical characteristics | ||
| Frame Height | 59 mm | |
| Frame Visible Width | 69-96.5 mm | |
| Sash Height | 69-96.5 mm | |
| Sash Depth | 72 mm | |
| Sash Visible Width | 72 mm | |
| Type | Hinged | |
| Max. Sash Width | 1.6 m | |
| Max. Sash Height | 2.4 m | |
| Max. Weight per Sash | 150 Kg | |
| Glazing Width Possibilities | 33 mm | |
| Maximum Locking Points | 9 | |
| Thermal Break Width | 24 / 28 mm | |
| Sealing Type | 3 Gaskets | |
Performances | ||
| Fabrication Thermal Transmittance EN ISO 10077-2 (Uw) | 1.2-1.8 W/(m2K) | |

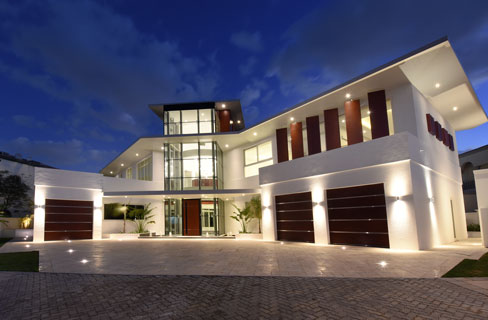

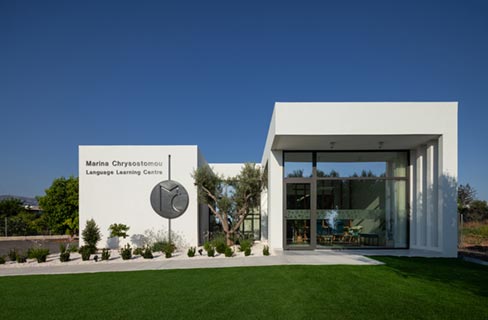

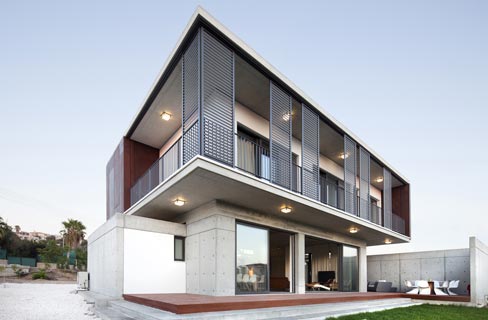

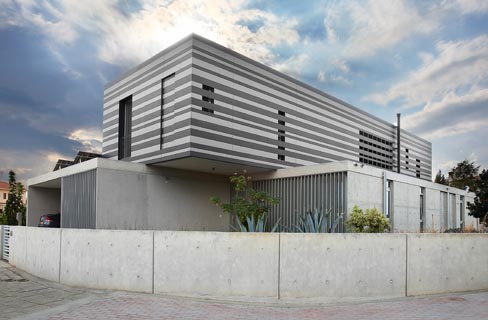

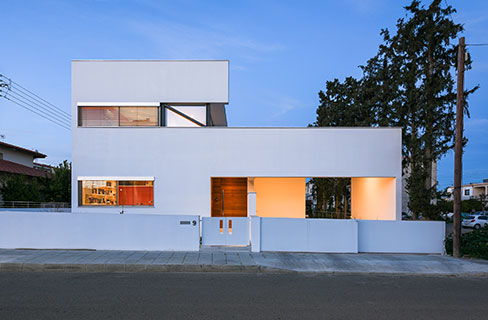

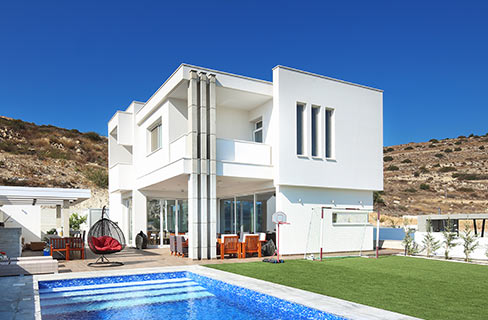

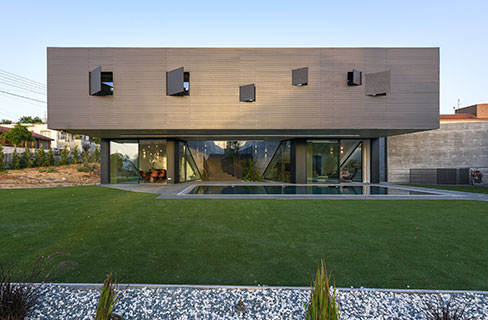

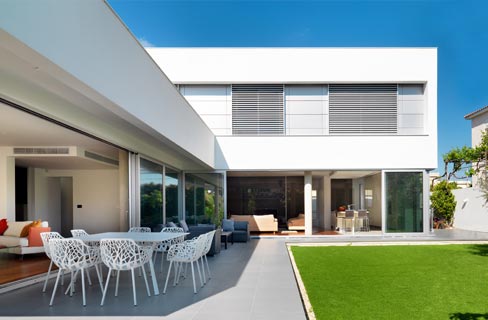

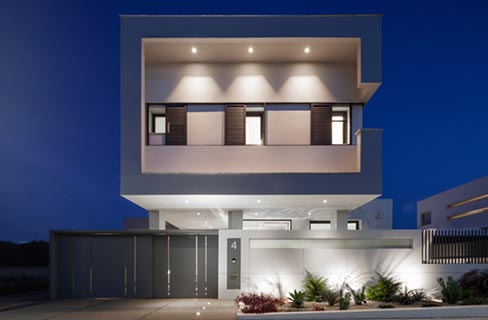

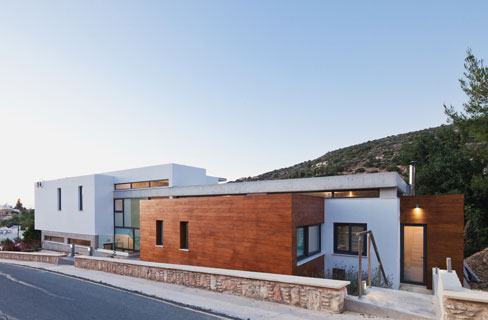

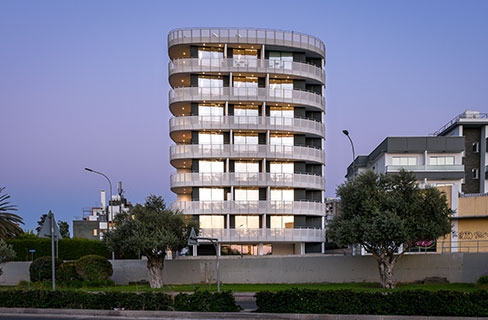

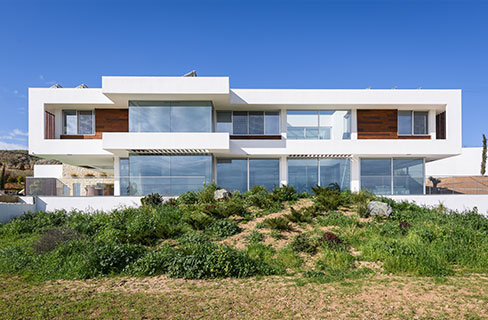

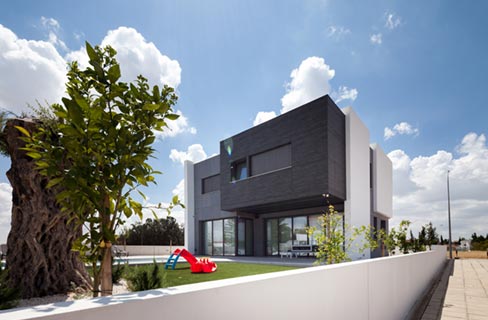

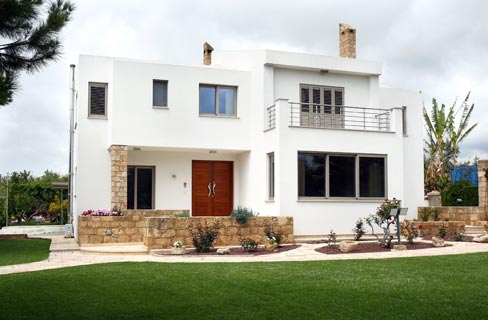

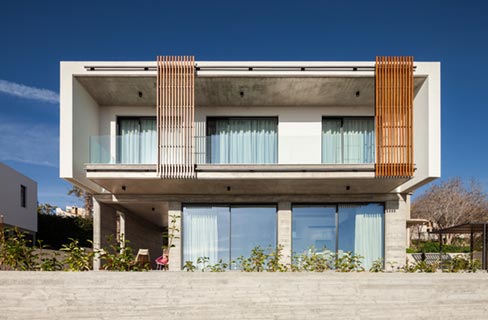

Projects
