Rabel 35 Thermal
Commercial Systems

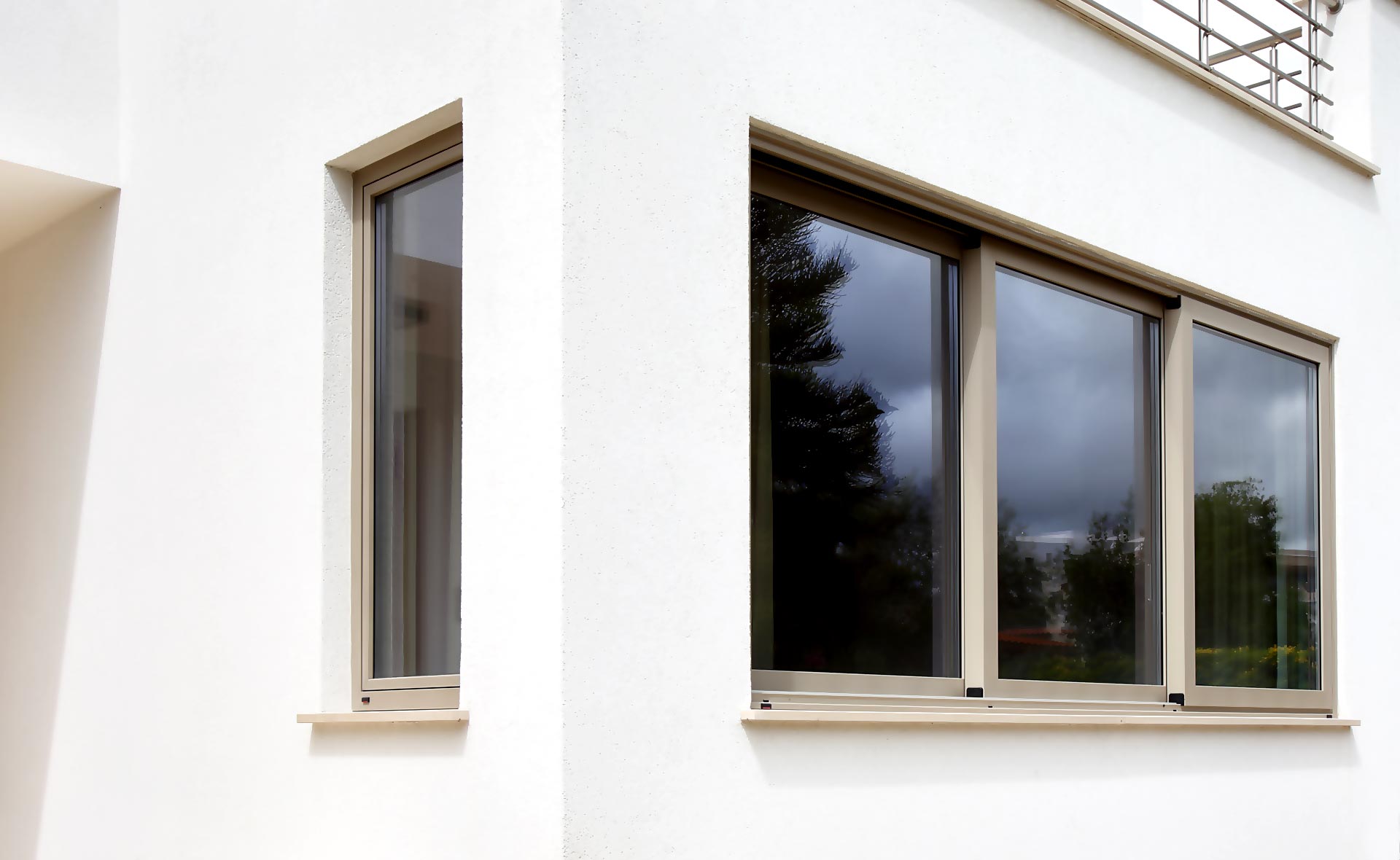

Rabel 35 Thermal is a very low cost thermal sliding system. Its prime use is for new buildings with a very low budget that traditionally were using cold series. Having a very low track, 35mm, makes it an attractive proposition for renovation buildings. Compared to most commercial thermal systems it has the smallest sections making it a good aesthetic option for small openings.
It is equipped with a custom-made multipoint locking system that fulfils the highest standards for burglary resistance and is powered by a selection of design handles or recessed latches. It is available in all common typologies having up to six track frames.
Being able to take a glazing panel 27 mm wide it can accommodate an internal air space exceeding 16mm thus taking full advantage of the glass thermal performance.
Technical Specifications
| Technical characteristics | ||
| Frame Height | 24 / 35 mm | |
| Frame Visible Width | 74 mm | |
| Sash Height | 74 mm | |
| Sash Depth | 35 mm | |
| Sash Visible Width | 35 mm | |
| Center Mullion Width | 74 mm | |
| Type | Conventional | |
| Max. Weight per Sash | 200* Kg | |
| Glazing Width Possibilities | 27 mm | |
| Maximum Locking Points | 4 | |
| Thermal Break Width | 20 / 39 mm | |
| Sealing Type | Brush with Cloth | |
| * The maximum dimensions of the construction are determined by the manufacturer according to the typology and conditions of the project | ||
Performances |
||
| Fabrication Thermal Transmittance EN ISO 10077-2 (Uw) | ≥1.8 W/(m2K) | |
