Rabel 3600 Super Thermal

Commercial Systems

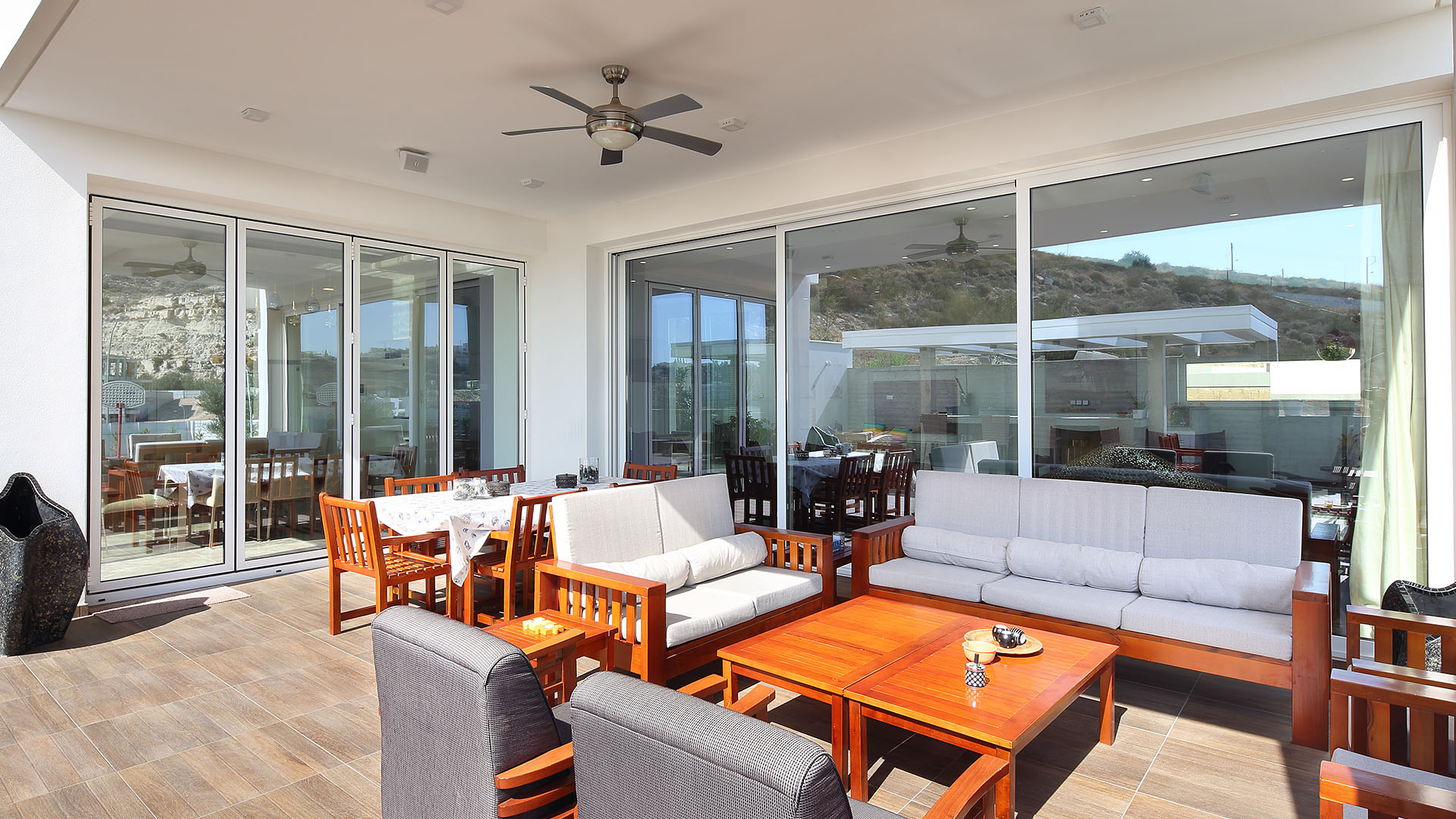

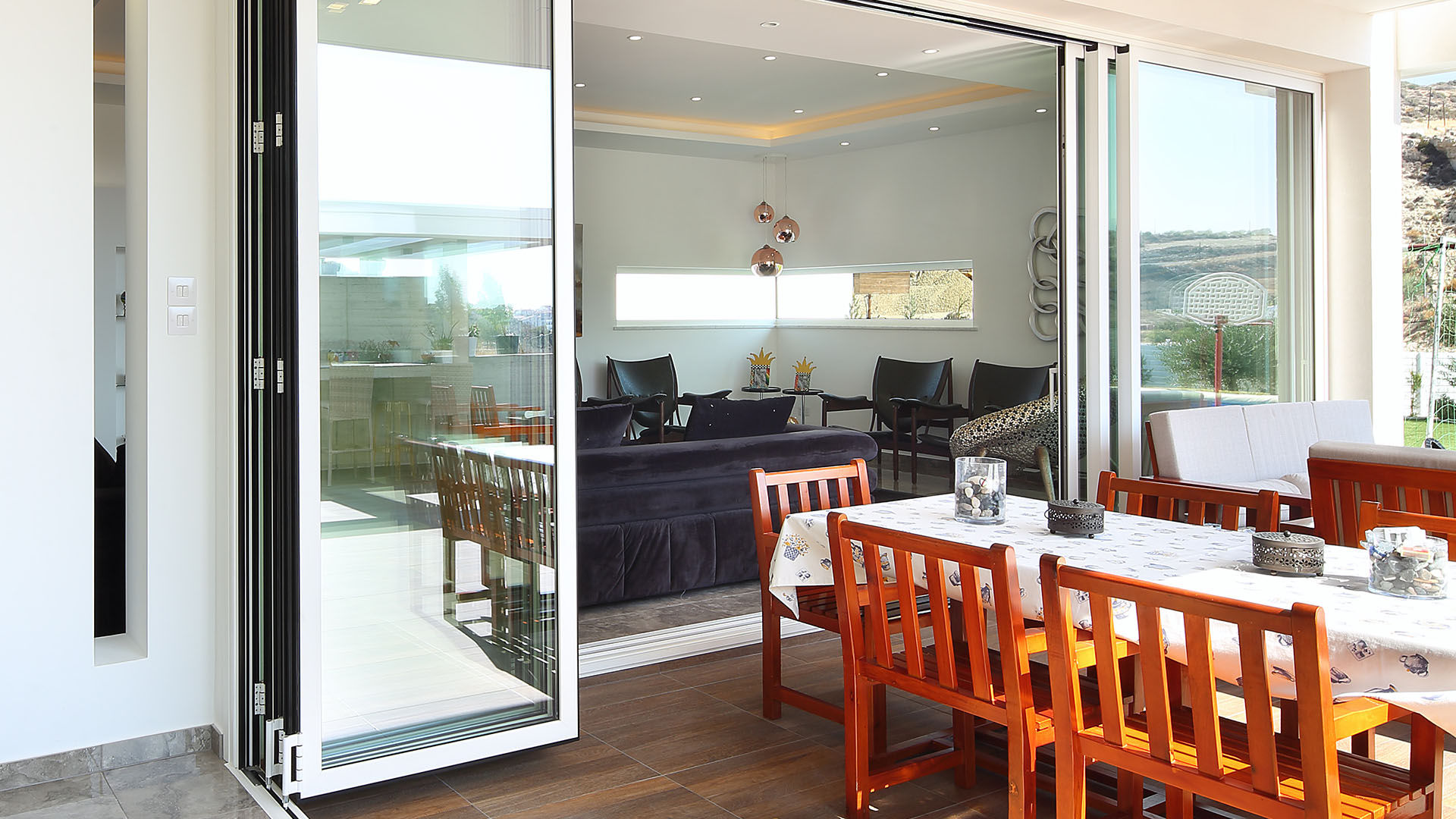

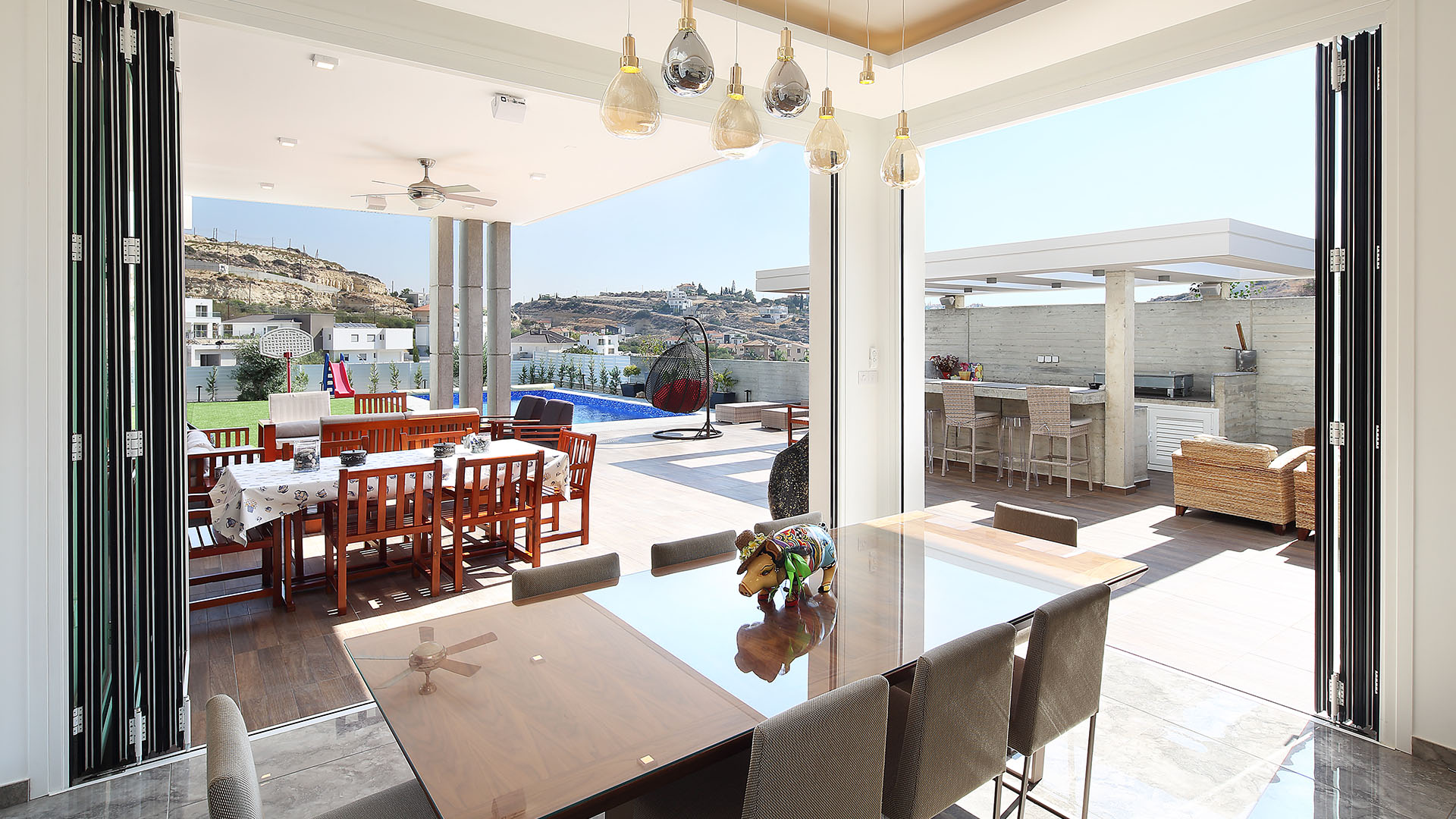

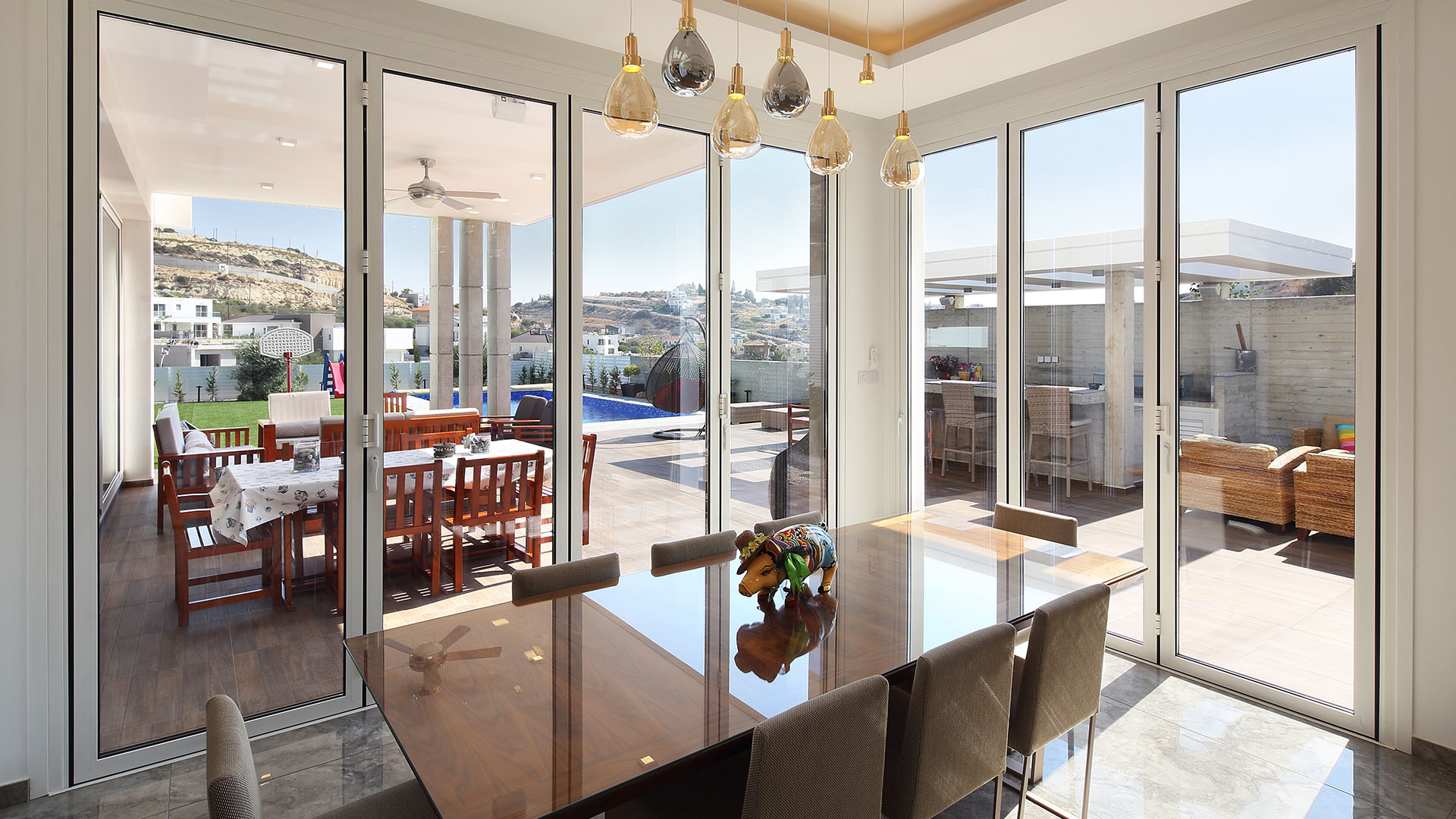

The system Rabel 3600 Super Thermal has been designed for the fabrication of large fold and slide doors up to 3,5 meters height and 1,2 meters wide per leaf. Its main application is for commercial and residential buildings, where high thermal insulation is required in combination with the full usage of the opening space. The system is based on a basic leaf width of 60mm.

Three different threshold designs are available making it possible to have a fully flat threshold as well as a high level of water tightness, fulfilling the needs of most projects.  Since the system is also available with gaskets along the whole perimeter as well as a drainage gutter, its performance in water tightness and air permeability is remarkable. It supports all typologies as well as corner fabrications.

The Rabel 3600 Super Thermal is characterized by its bottom sliding mechanism which offers by design the best performance in terms of smooth slide and reliable operation over time. The sliding system is protected from dirt and unwanted objects by two hard brushes which run along the track ensuring unobstructed sliding motion. It also comes with stainless steel rollers.

In the standard equipment a two point lock is included which can be upgraded into a multiple point burglary resistance system.

Technical Specifications

Technical characteristics
Frame Height 71/90 mm
Frame Visible Width 60 mm
Sash Height 60 mm
Sash Depth 60 mm
Sash Visible Width 60 mm
Type Hold & Slide
Max. Sash Width 1.2 m
Max. Sash Height 3.5 m
Max. Weight per Sash 130 Kg
Glazing Width Possibilities 32 mm
Maximum Locking Points 3
Thermal Break Width 16-24 mm
Sealing Type 2-4 Gaskets

Performances
Fabrication Thermal Transmittance EN ISO 10077-2 (Uw) ≥1.6 W/(m2K)
