Rabel 48 Super Thermal
Commercial Systems

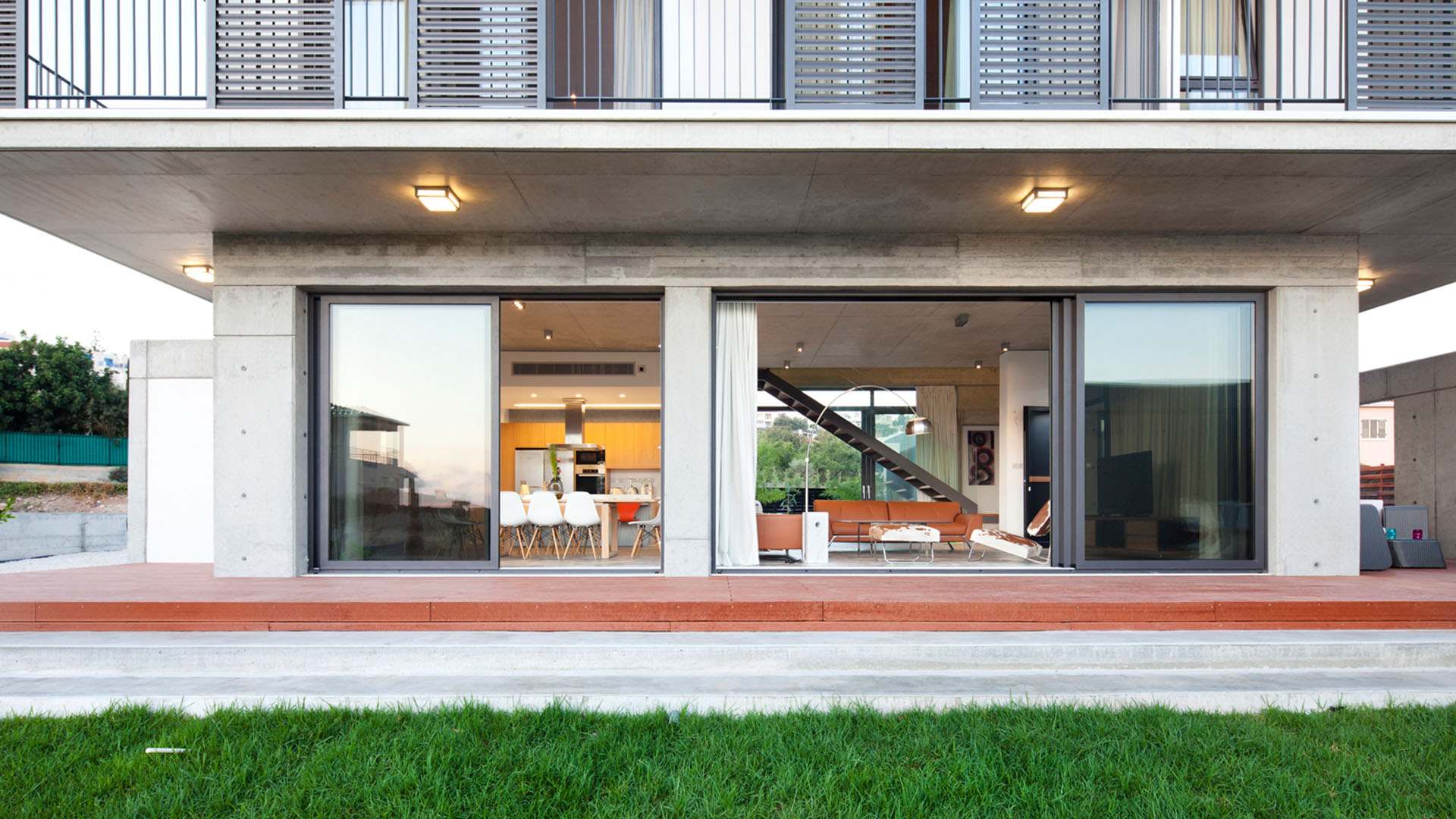

Rabel 48 Super Thermal is a best value for money sliding system designed with demanding requirements in terms of thermal insulation. Having a maximum weight capability of 200 Kg per sash using synthetic rollers or optionally stainless steel rollers as well as its relatively flat bottom track can be the ideal choice to satisfy the needs of most residential and commercial projects.
It is equipped with a custom made multipoint locking system that fulfils the highest standards for burglary resistance and is powered by a selection of design handles or recessed latches.
It is available in all common typologies having up to 5 track frames. It comes with a sophisticated high performance water drainage system that is hidden below the frame. Being able to take a glazing panel 31.5 mm wide it can accommodate acoustical double glazing panes for soundproofing as well as an internal air space exceeding 16mm thus taking full advantage of the glass thermal performance.
Technical Specifications
| Technical characteristics | ||
| Frame Height | 49 mm | |
| Frame Visible Width | 84 mm | |
| Sash Height | 84 mm | |
| Sash Depth | 43 mm | |
| Sash Visible Width | 43 mm | |
| Center Mullion Width | 84 mm | |
| Type | Conventional | |
| Max. Weight per Sash | 200* Kg | |
| Glazing Width Possibilities | 31.5 mm | |
| Maximum Locking Points | 4 | |
| Thermal Break Width | 24 / 50 mm | |
| Sealing Type | Brush with Cloth | |
| * The maximum dimensions of the construction are determined by the manufacturer according to the typology and conditions of the project | ||
Performances |
||
| Fabrication Thermal Transmittance EN ISO 10077-2 (Uw) | ≥1.5 W/(m2K) | |
