Rabel 8000
Commercial Systems

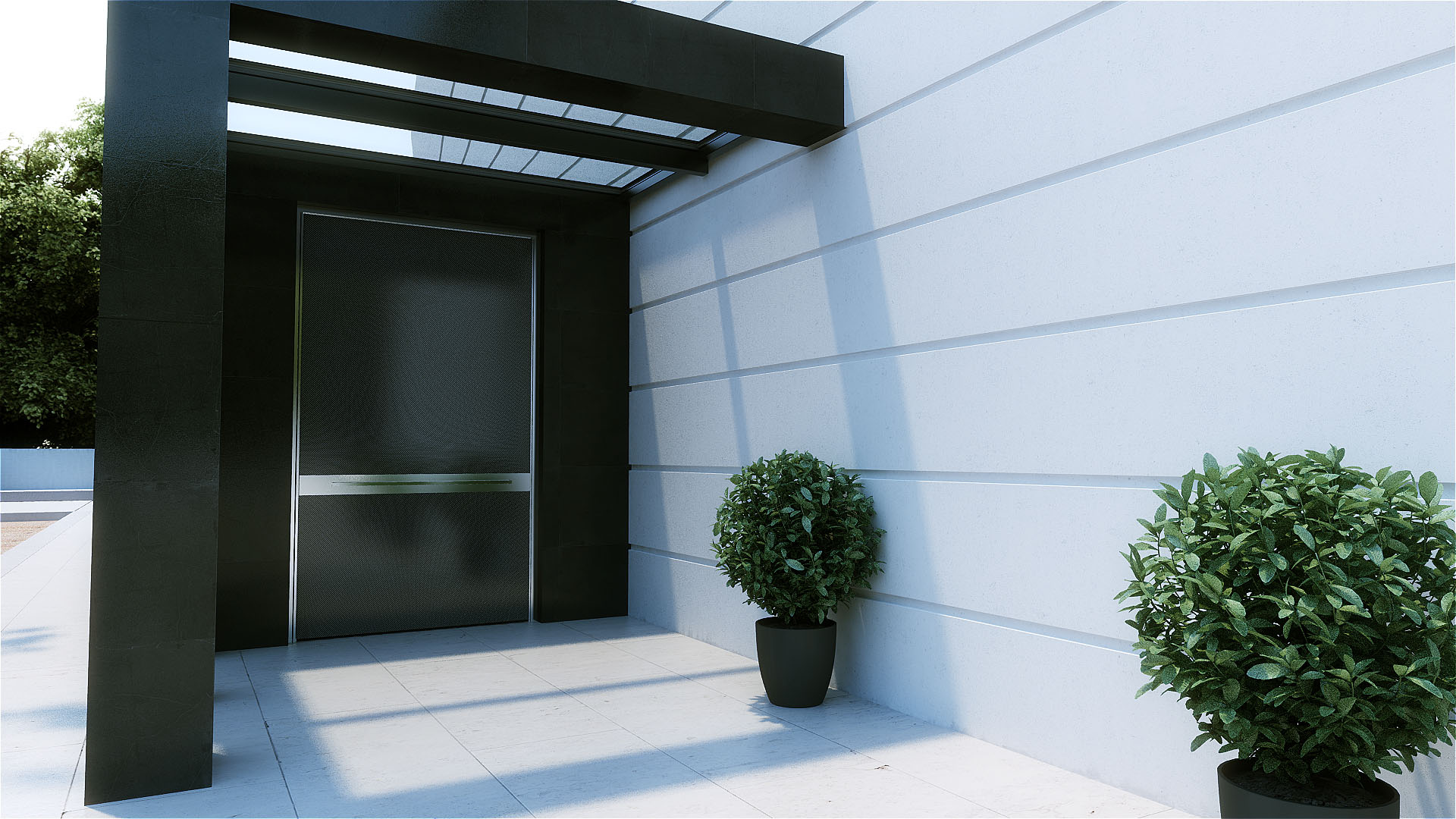

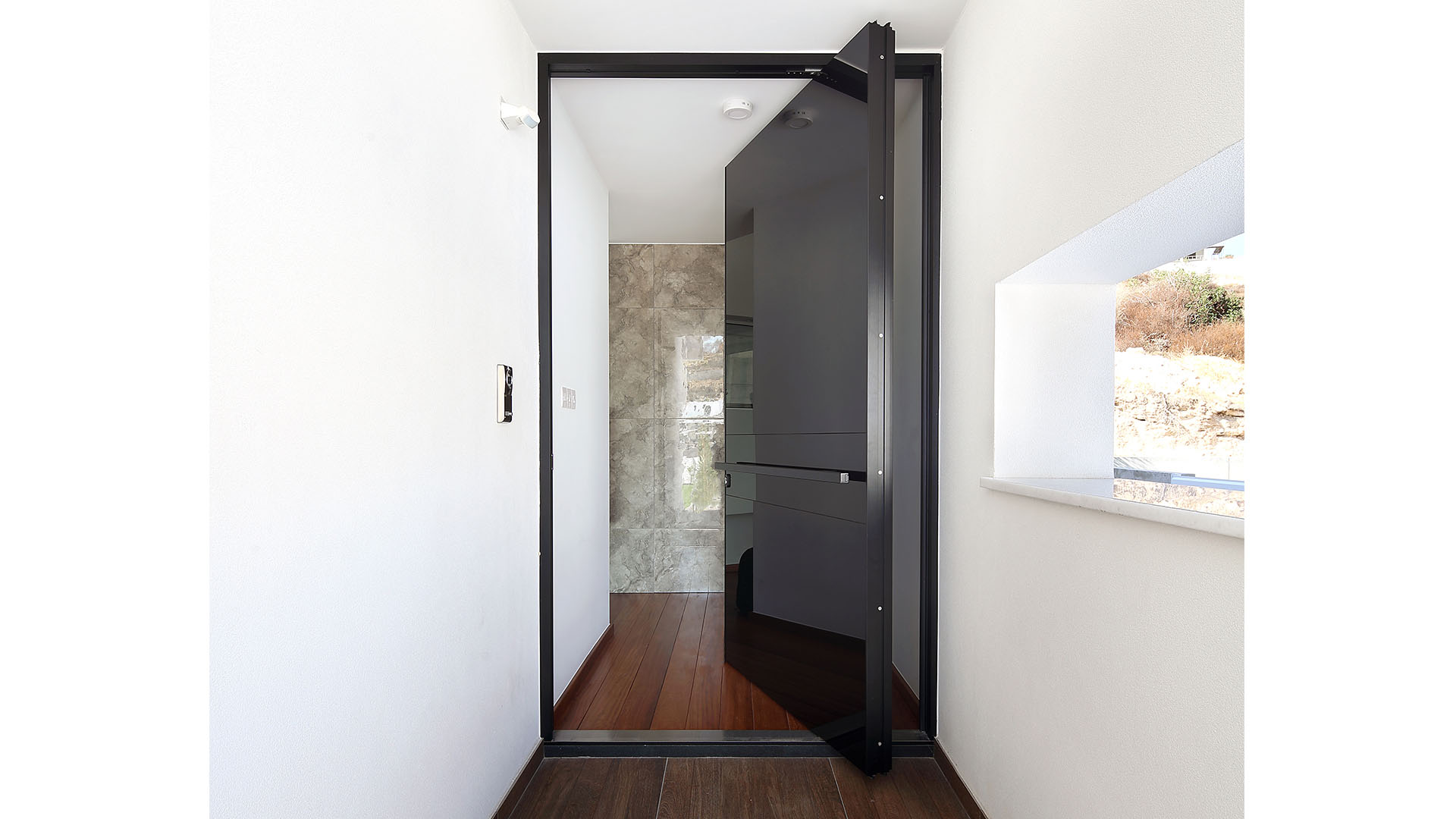

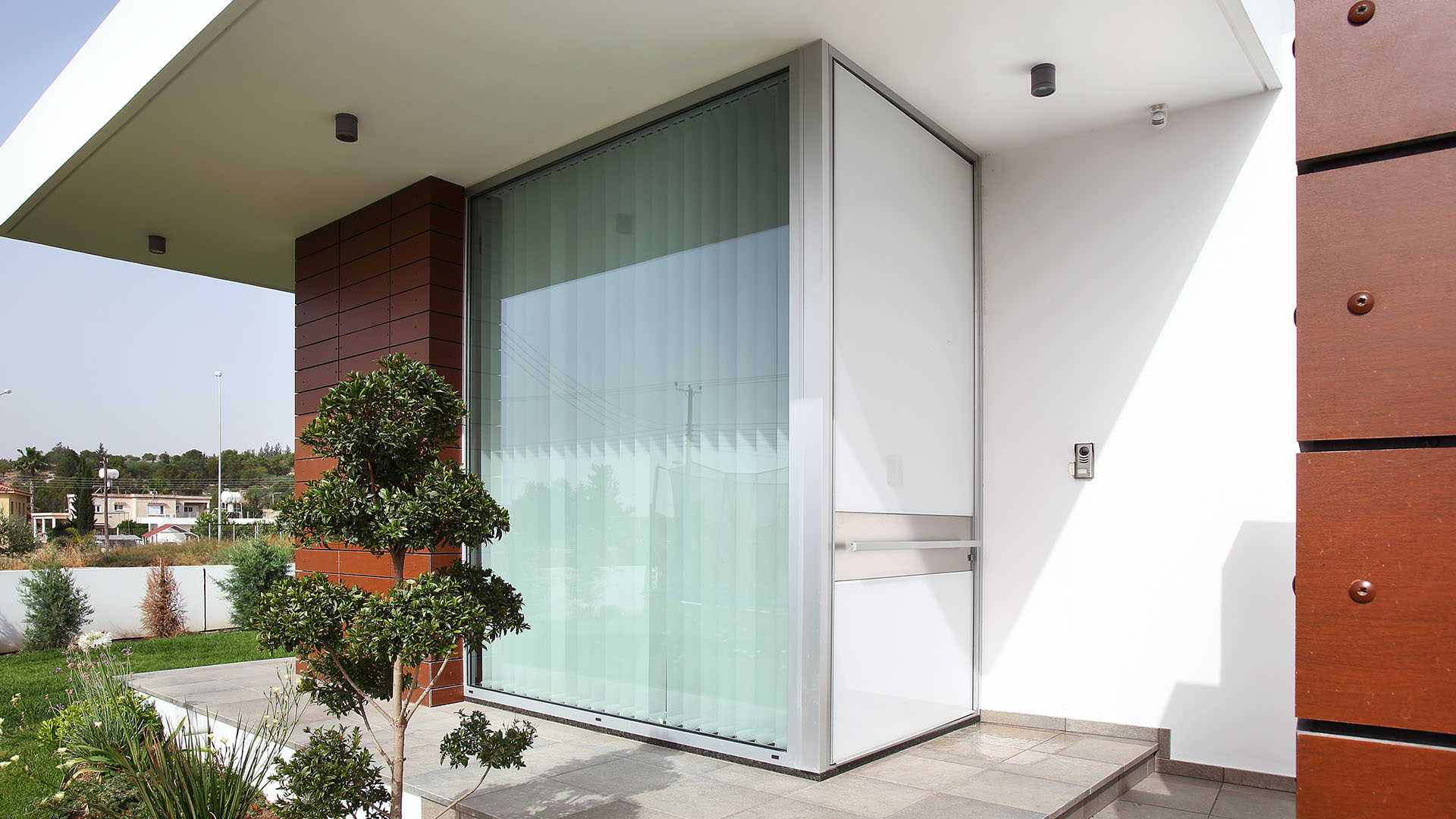

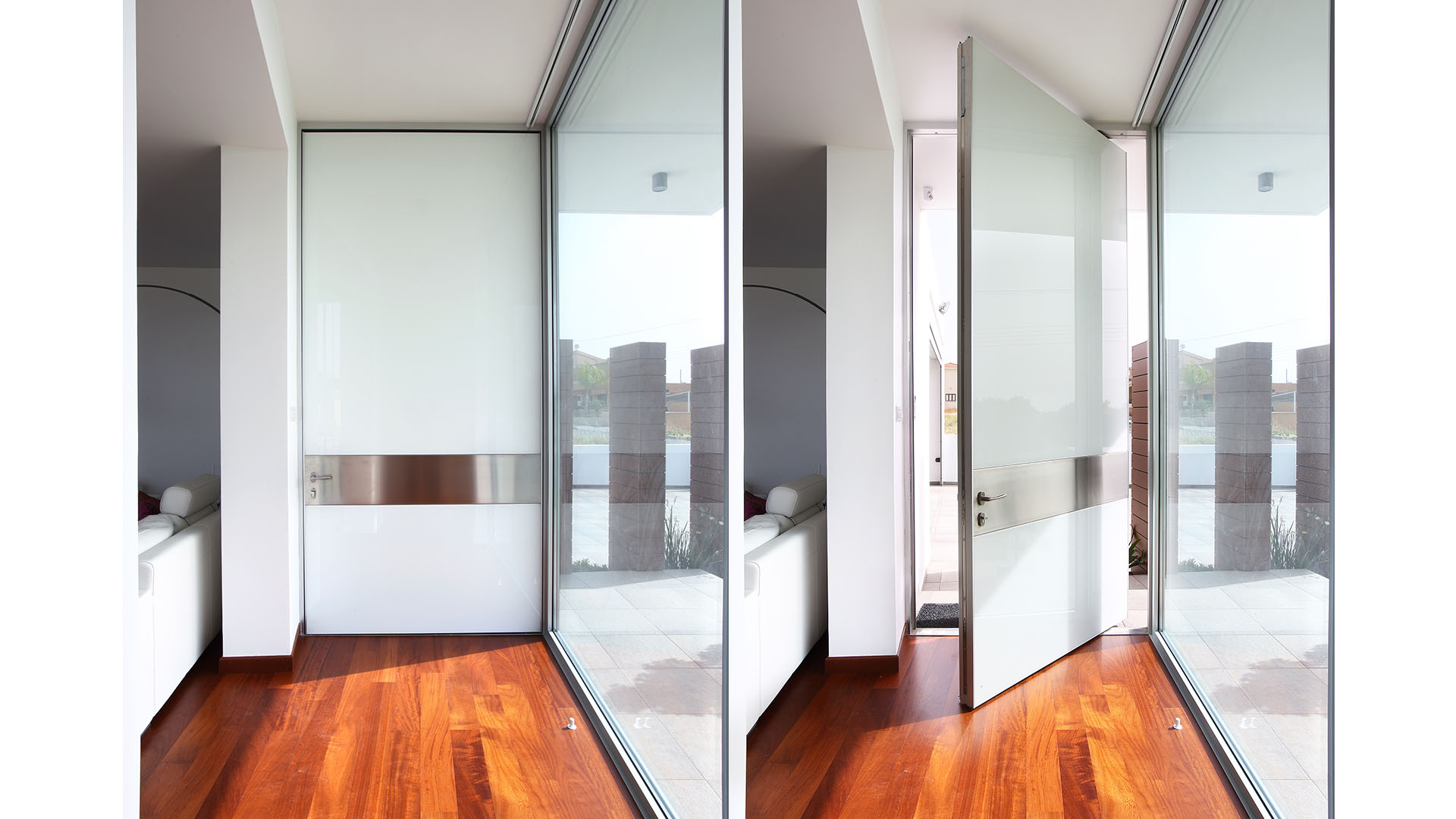

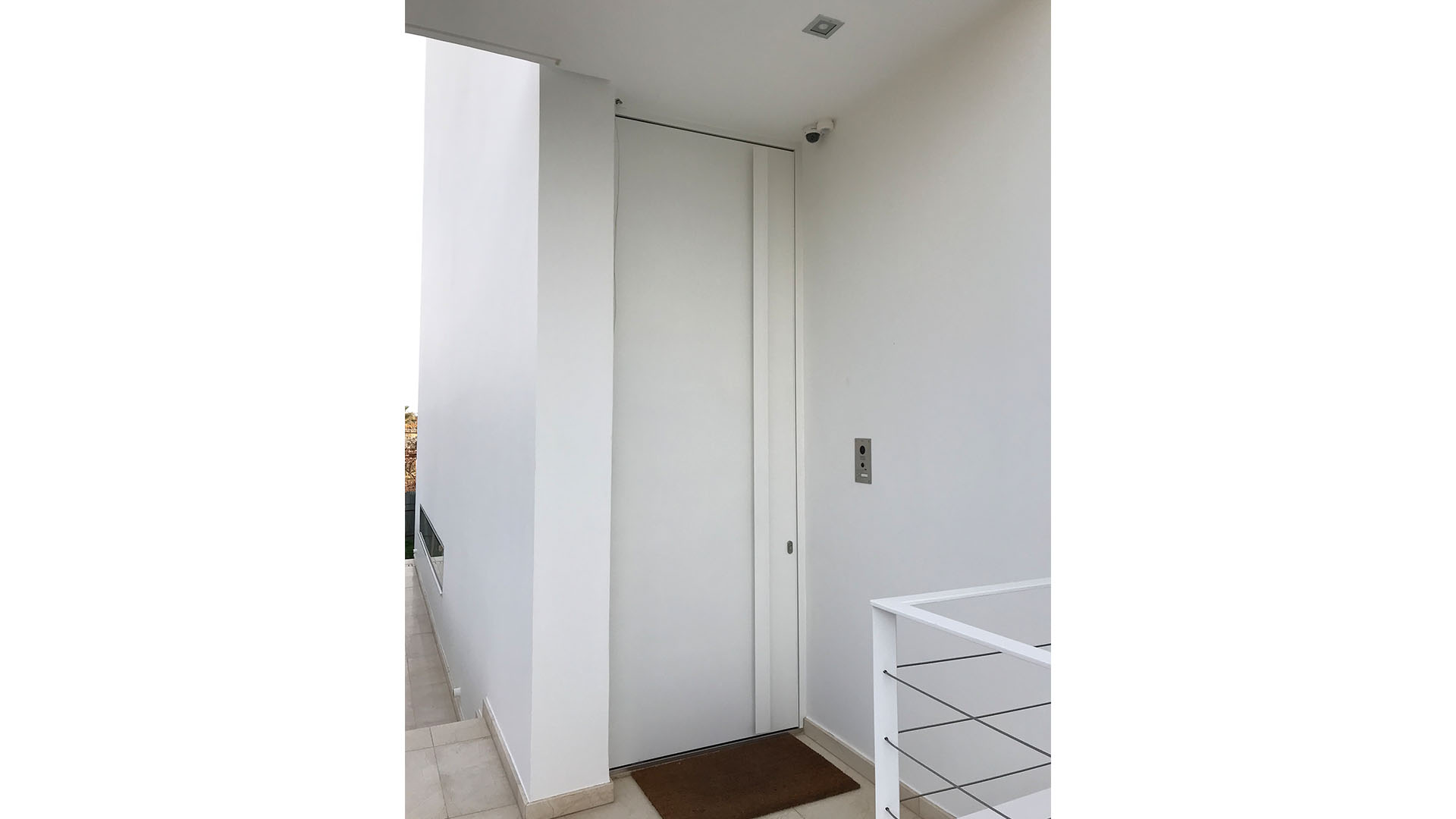

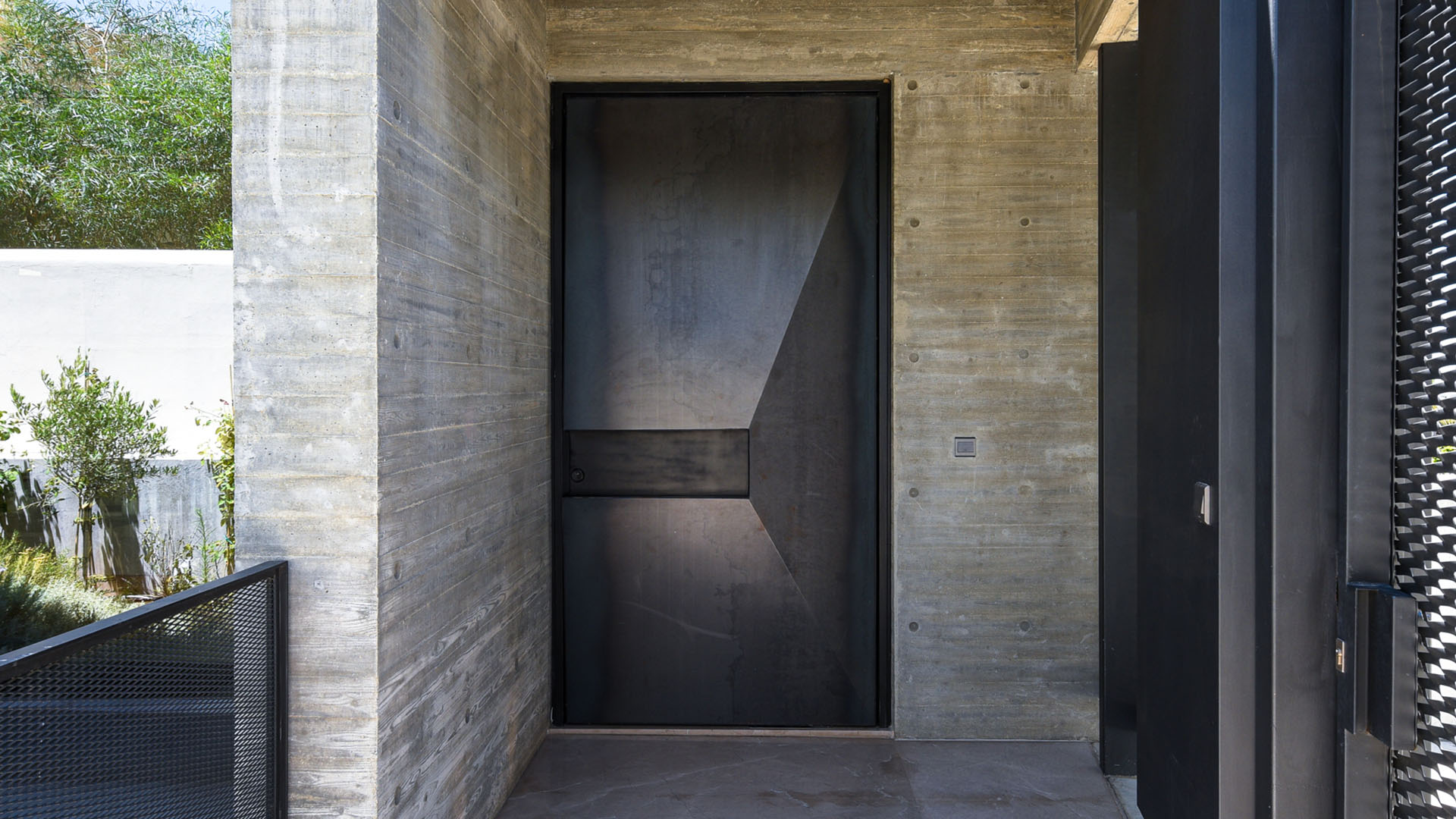

The Rabel 8000 pivot door system has been designed for large modern entrance doors with high level of burglary resistance. The installed pivot mechanism requires minimum effort to provide smooth operation while opening and closing. The heavy duty steel frame construction ensures a trouble free operation without the need of further adjustments over time.
The standard equipment is inclusive of a three point burglary resistant lock, a long pull handle, a stainless steel door handle and perimeter sealing.
The front and rear door face is available in various finishes ranging from security glass, synthetic panel, aluminium sheet, HPL, tile as well as natural wood.
Technical Specifications
| Technical characteristics | ||
| Post Width | 42/44 mm | |
| Frame Height | 42/44 mm | |
| Frame Visible Width | 9 mm | |
| Sash Height | 9 mm | |
| Sash Depth | 103 mm | |
| Sash Visible Width | 103 mm | |
| Type | Pivot | |
| Max. Sash Width | 2.5 m | |
| Max. Sash Height | 4.0 m | |
| Max. Weight per Sash | 250 Kg | |
| Maximum Locking Points | 3 | |
| Sealing Type | 1 Gasket | |
Performances |
||
| Fabrication Thermal Transmittance EN ISO 10077-2 (Uw) | >=1.3 W/(m2K) | |
