Rabel 820 Super Thermal
Commercial Systems
The Rabel 820 Super Thermal aluminium system has been engineered without compromise to offer the best in opening doors and windows. Its sash is characterised by triple joining means to withstand the loads of triple glazing units having a weight up to 150Kg per sash.
It is available in simple opening typologies, tilt only, tilt and turn and many other not so common. It is available in two aesthetic lines, namely sofline and flat design to accommodate classical and modern architecture. Having a frame thermal performance Uf of less than 1.6 W/(m2K) and a fabrication thermal performance Uw of less than 0.8 W/(m2K) makes it is suitable for use in passive houses to reach zero energy consumption. It comes with a burglary resistant multipoint perimeter locking system and a choice of safety and acoustic glass types reaching up to 51 dB of sound insulation.
Technical Specifications
| Technical characteristics | ||
| Frame Height | 59 mm | |
| Frame Visible Width | 69-96.5 mm | |
| Sash Height | 69-96.5 mm | |
| Sash Depth | 82 mm | |
| Sash Visible Width | 82 mm | |
| Type | Hinged | |
| Max. Sash Width | 1.6 m | |
| Max. Sash Height | 2.4 m | |
| Max. Weight per Sash | 150 Kg | |
| Glazing Width Possibilities | 43 mm | |
| Maximum Locking Points | 9 | |
| Thermal Break Width | 34 / 38 mm | |
| Sealing Type | 3 Gaskets | |
Performances |
||
| Fabrication Thermal Transmittance EN ISO 10077-2 (Uw) | 0.8-1.5 W/(m2K) | |

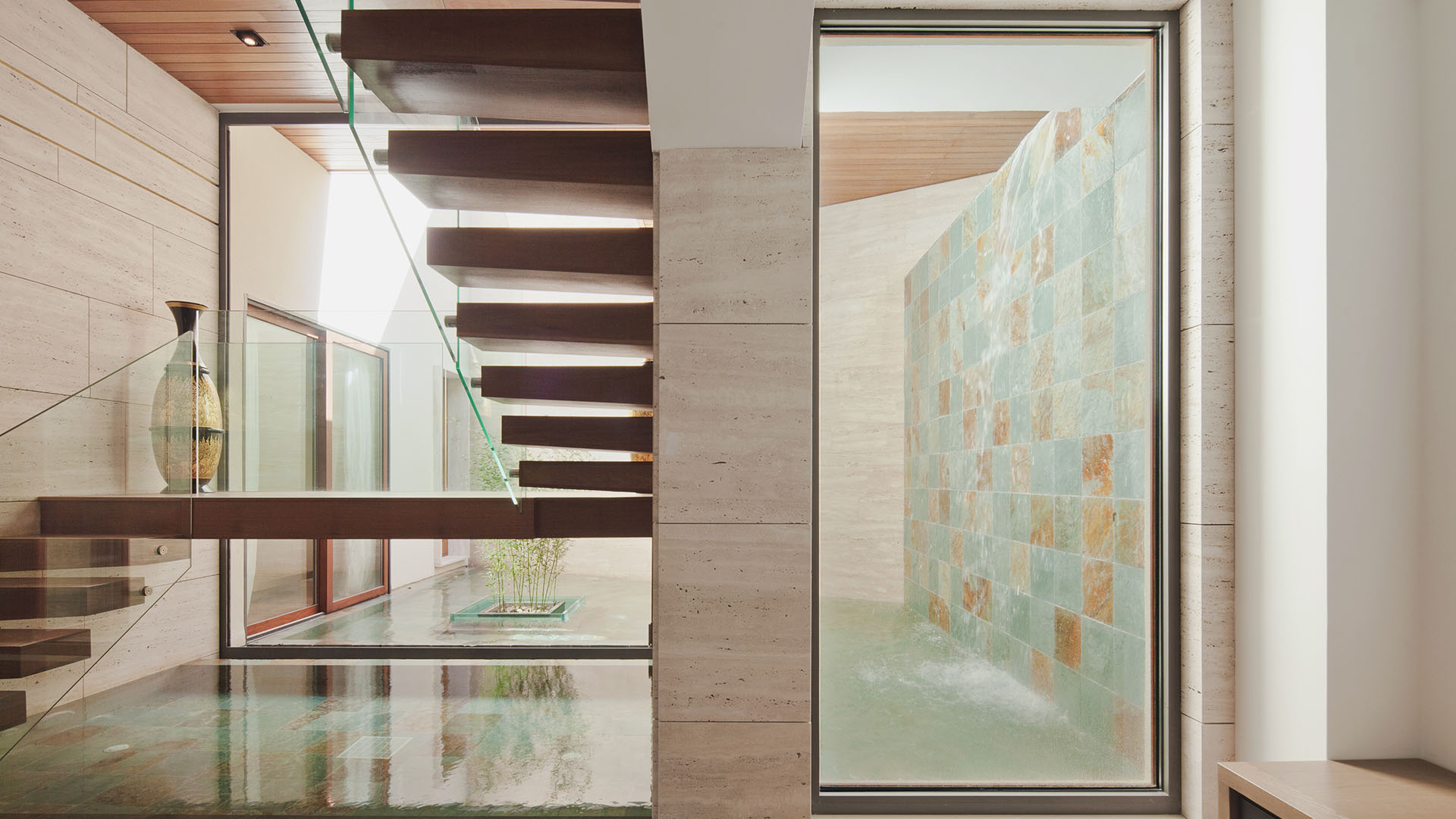

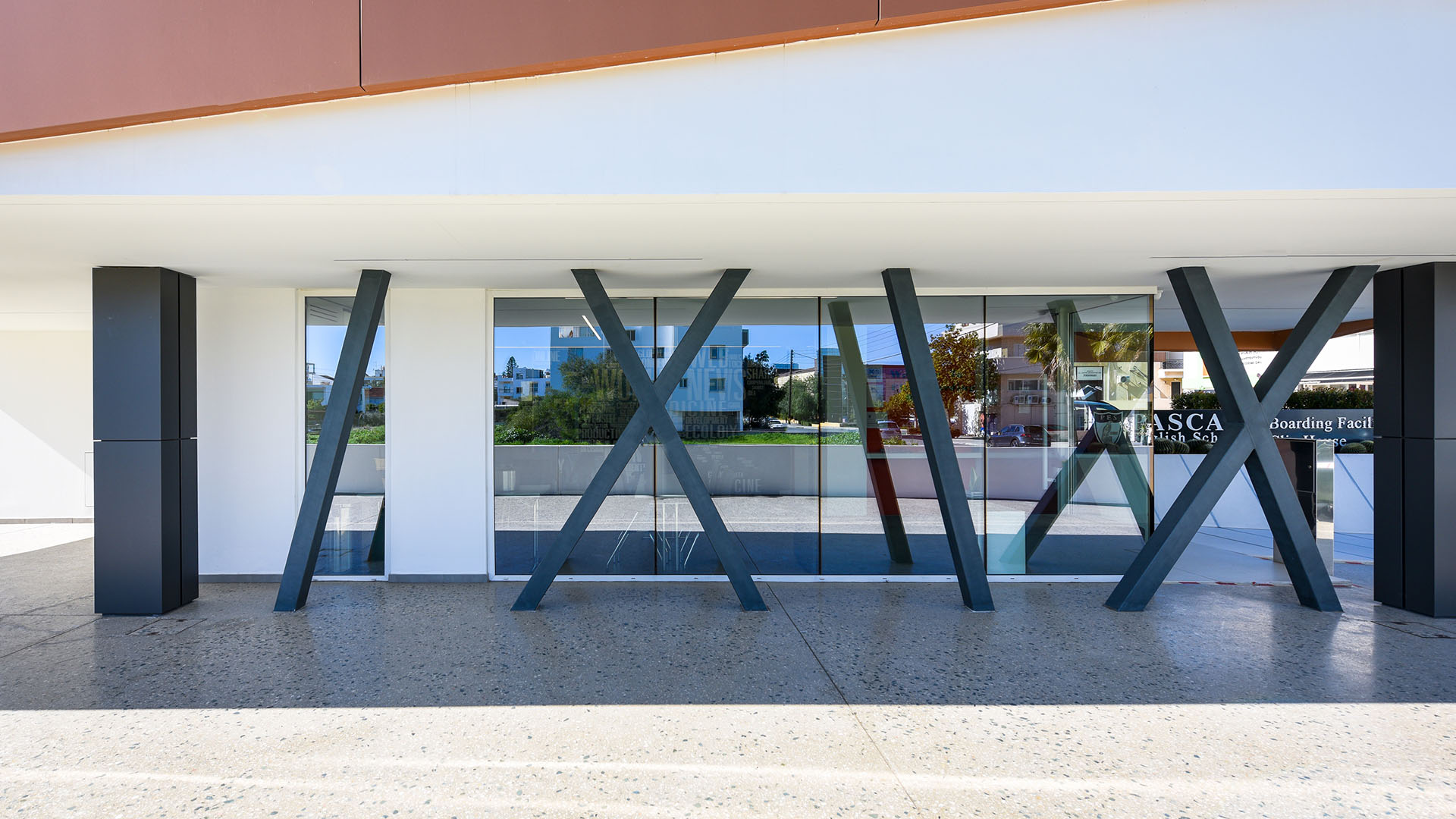

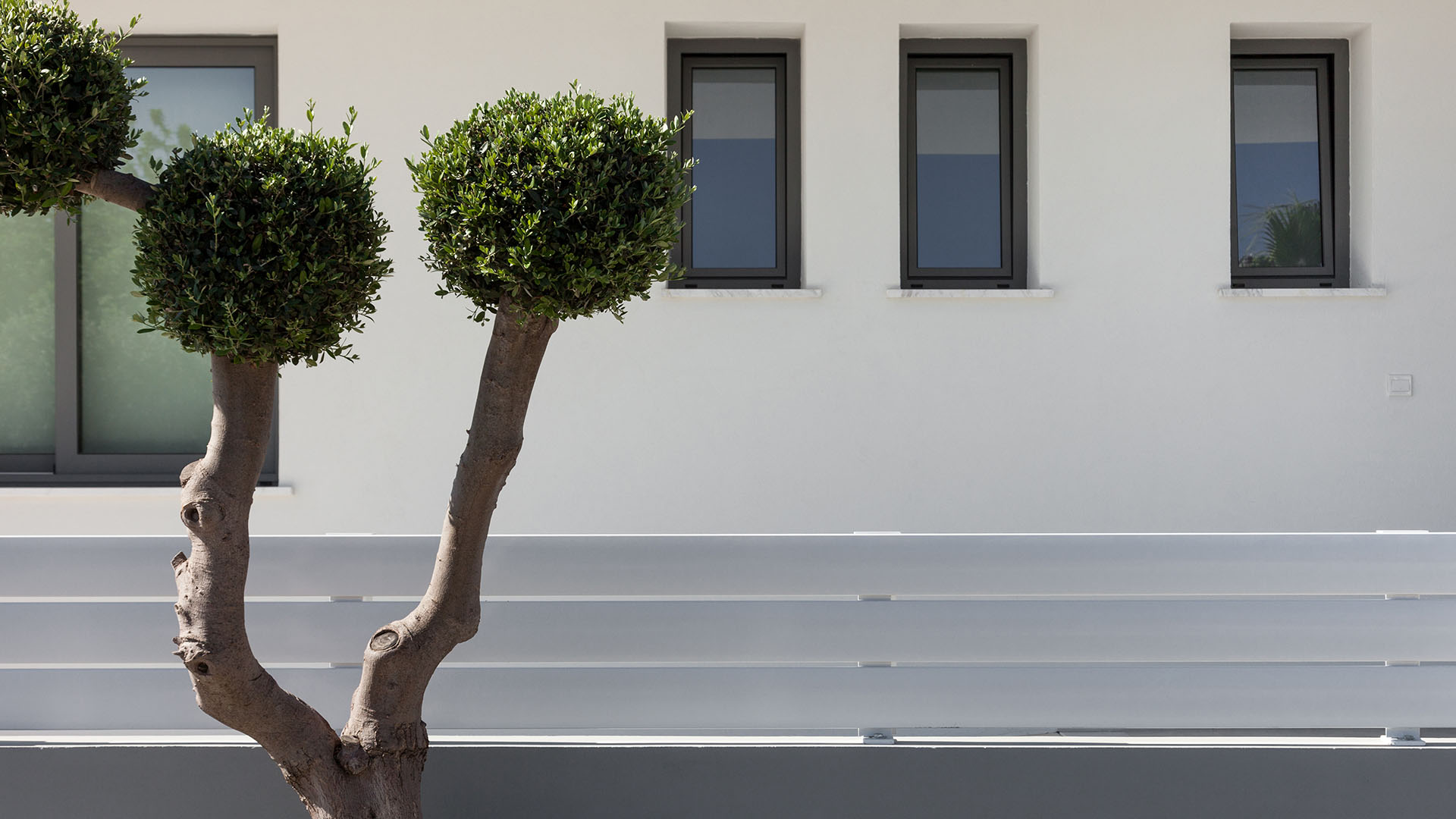

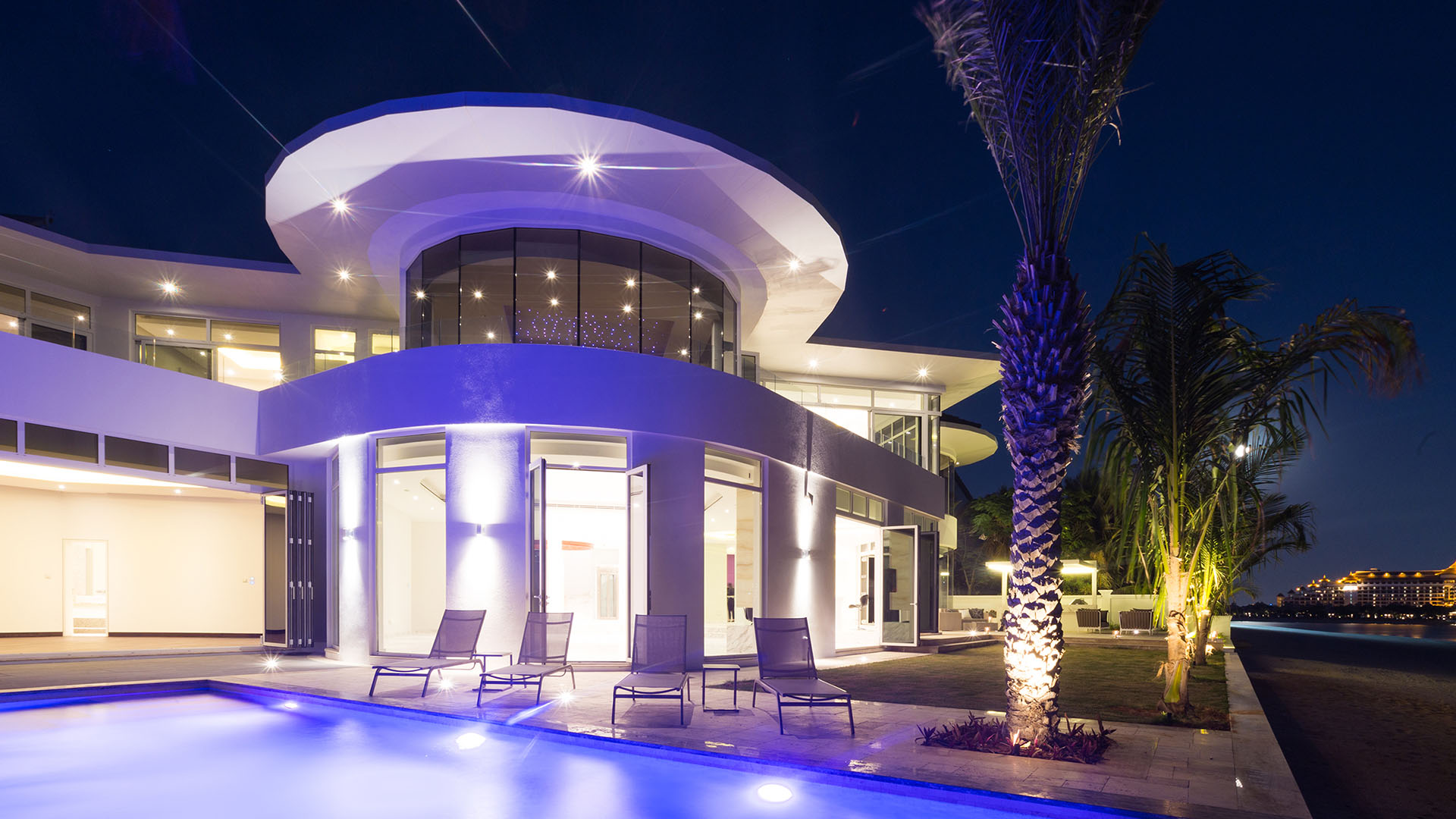

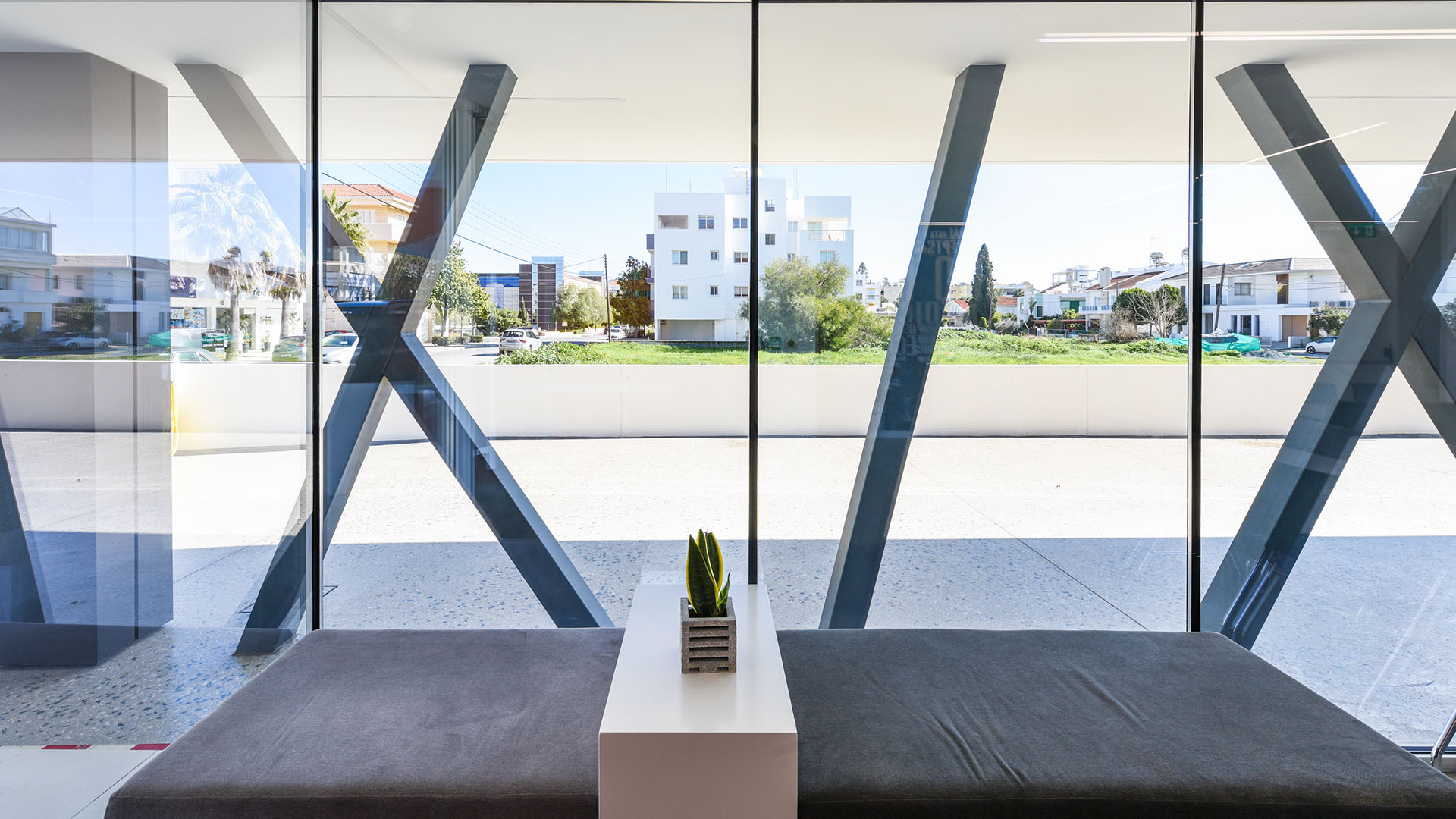

Projects
