Rabel 8200 Super Thermal Plus
Commercial Systems
The Rabel 8200 Super Thermal Plus was developed to offer the best in door and window performance without compromise, making it thus suitable to be used in projects with extreme weather conditions. All aspects affecting performance have been optimised to achieve the best in thermal & acoustic insulation, burglary resistance, wind load capability, water tightness and air tightness at very high wind pressures.
All common typologies have been accommodated and they are available in softline and square design. It comes with a burglary resistant multipoint perimeter locking system and a choice of safety and acoustic glasses types, reaching up to 51 dB of sound insulation.
The Rabel 8200 Super Thermal Plus shares the same technology, aesthetics and features as Rabel 820 Super Thermal with the addition of more thermal performance. It can reach a thermal performance Uf of less than 1.3 W/(m2K) and a Uw less than 0.7 W/(m2K), making it the ideal choice for passive/ Zero energy buildings.
Technical Specifications
| Technical characteristics | ||
| Frame Height | 59 mm | |
| Frame Visible Width | 69-96.5 mm | |
| Sash Height | 69-96.5 mm | |
| Sash Depth | 82 mm | |
| Sash Visible Width | 82 mm | |
| Type | Hinged | |
| Max. Sash Width | 1.6 m | |
| Max. Sash Height | 2.4 m | |
| Max. Weight per Sash | 150 Kg | |
| Glazing Width Possibilities | 43 mm | |
| Maximum Locking Points | 9 | |
| Thermal Break Width | 34 / 38 mm | |
| Sealing Type | 3 Gaskets | |
Performances |
||
| Fabrication Thermal Transmittance EN ISO 10077-2 (Uw) | 0.7-1.2 W/(m2K) | |

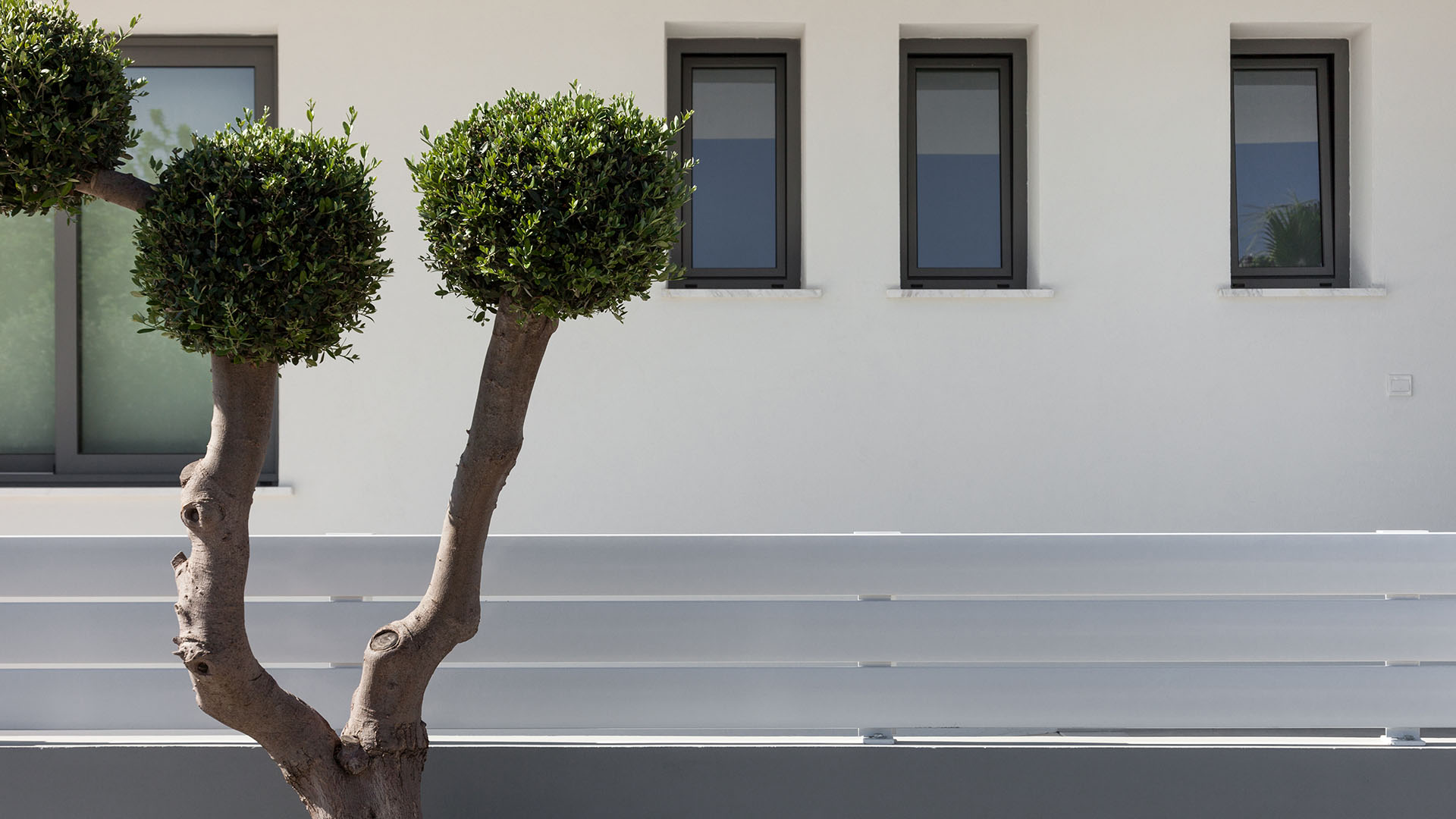

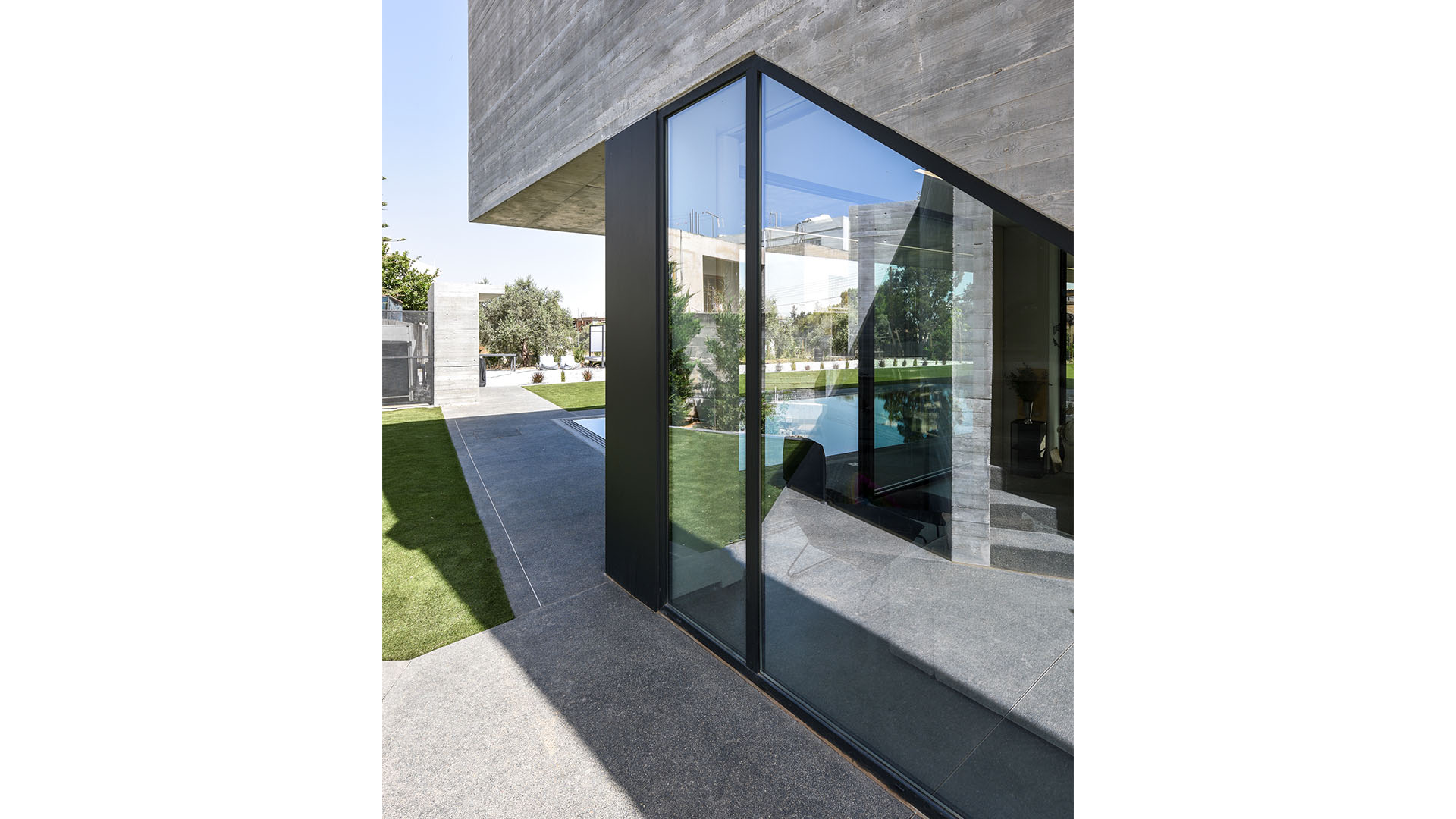

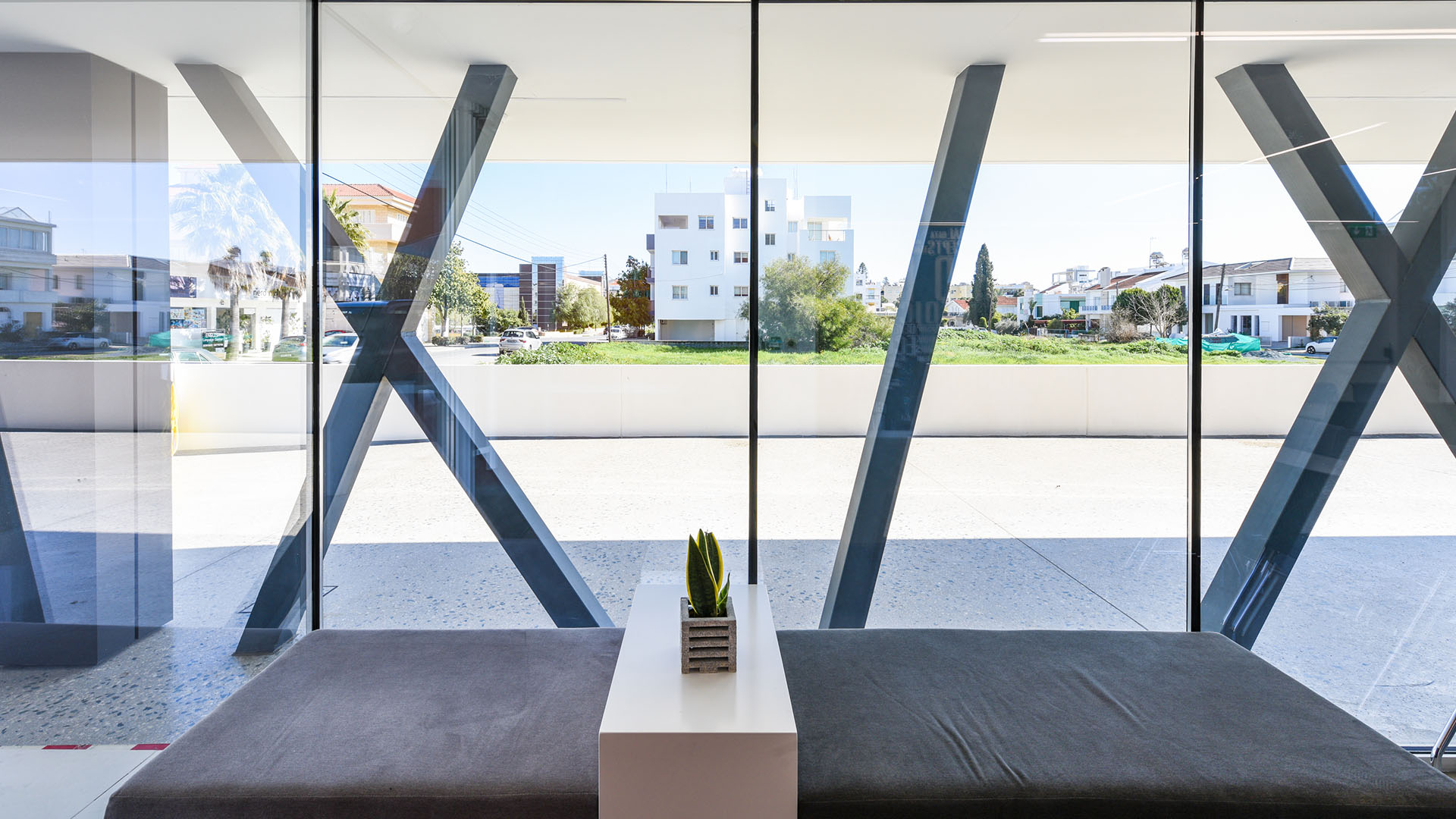

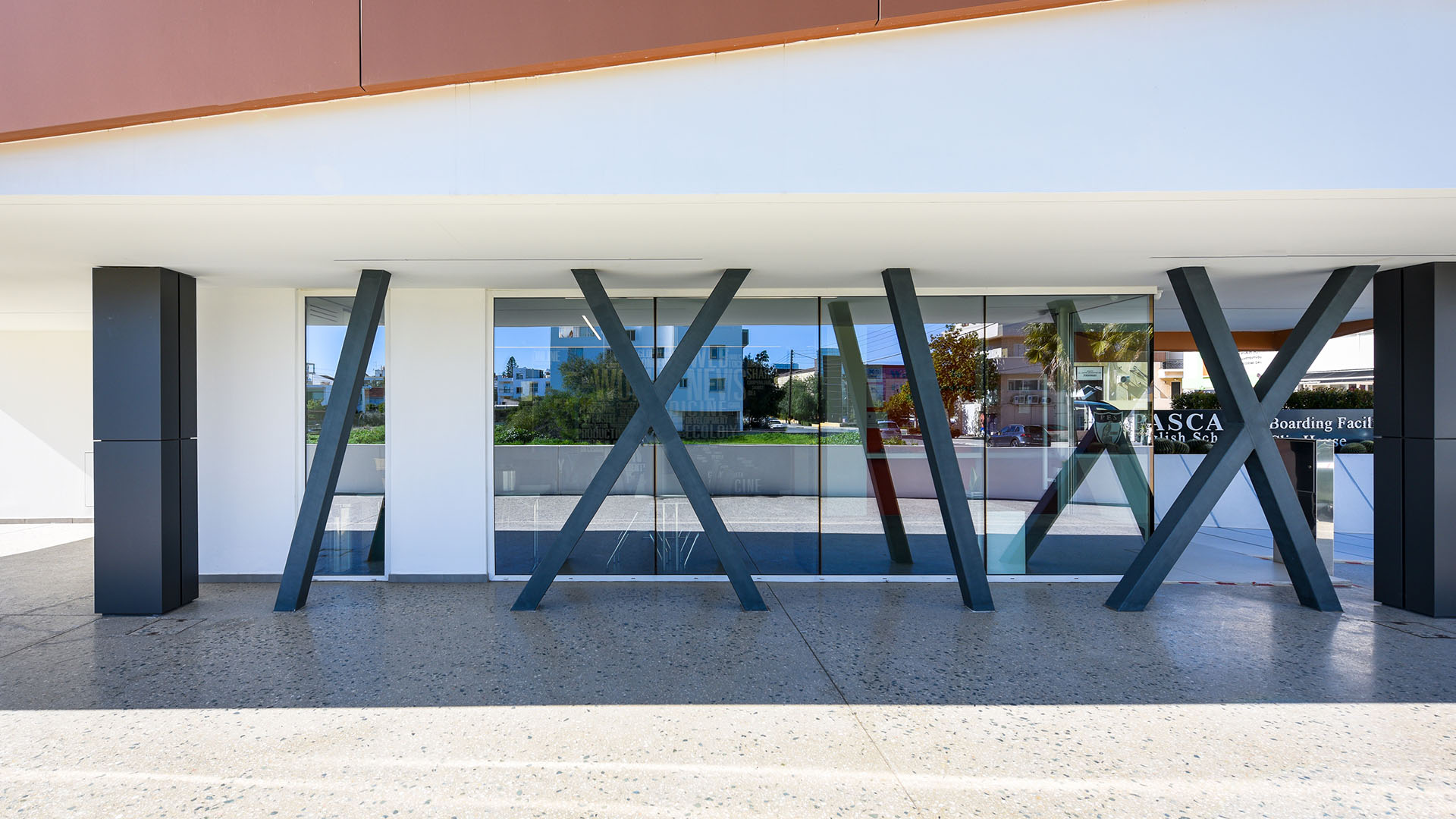

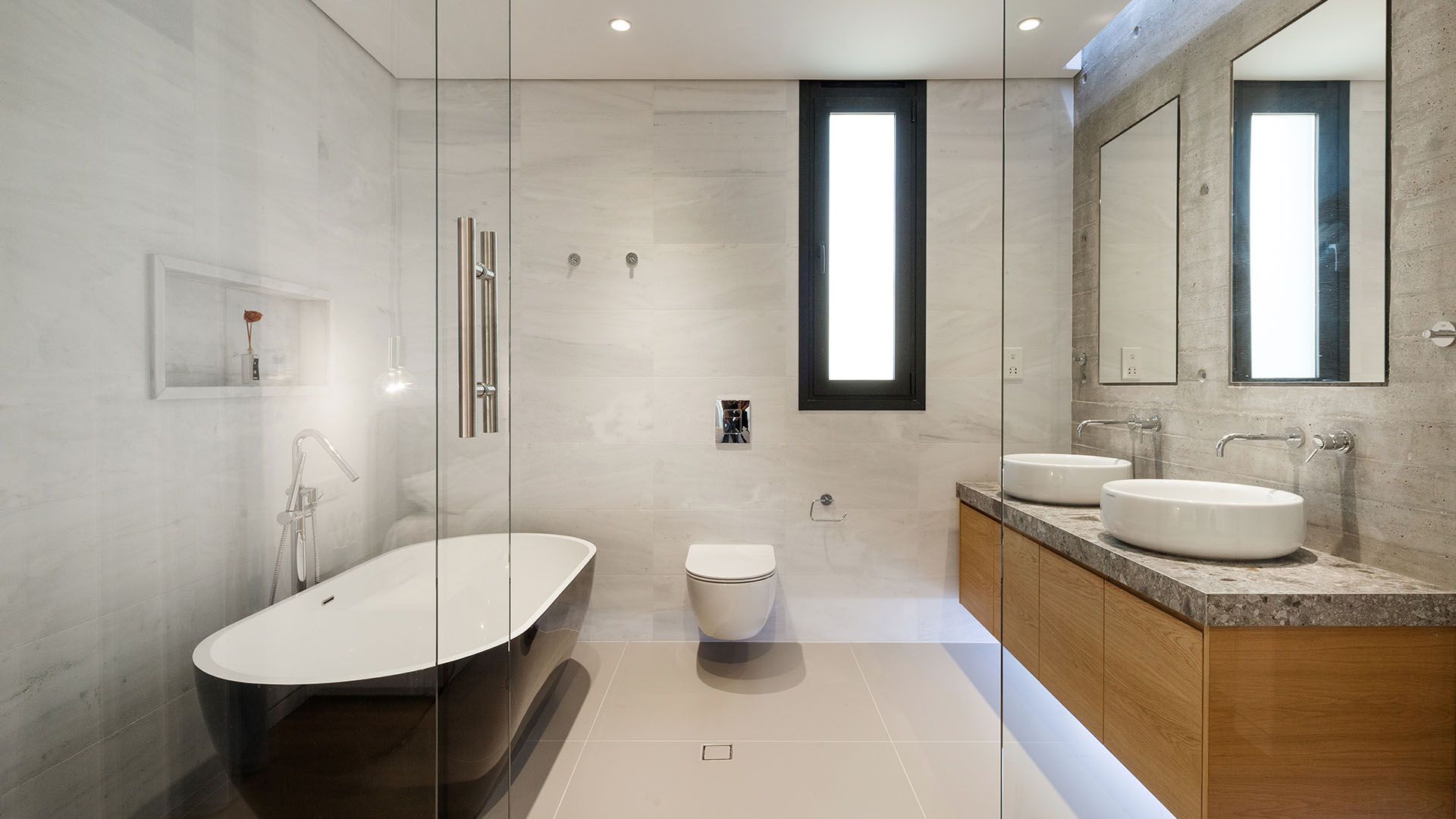

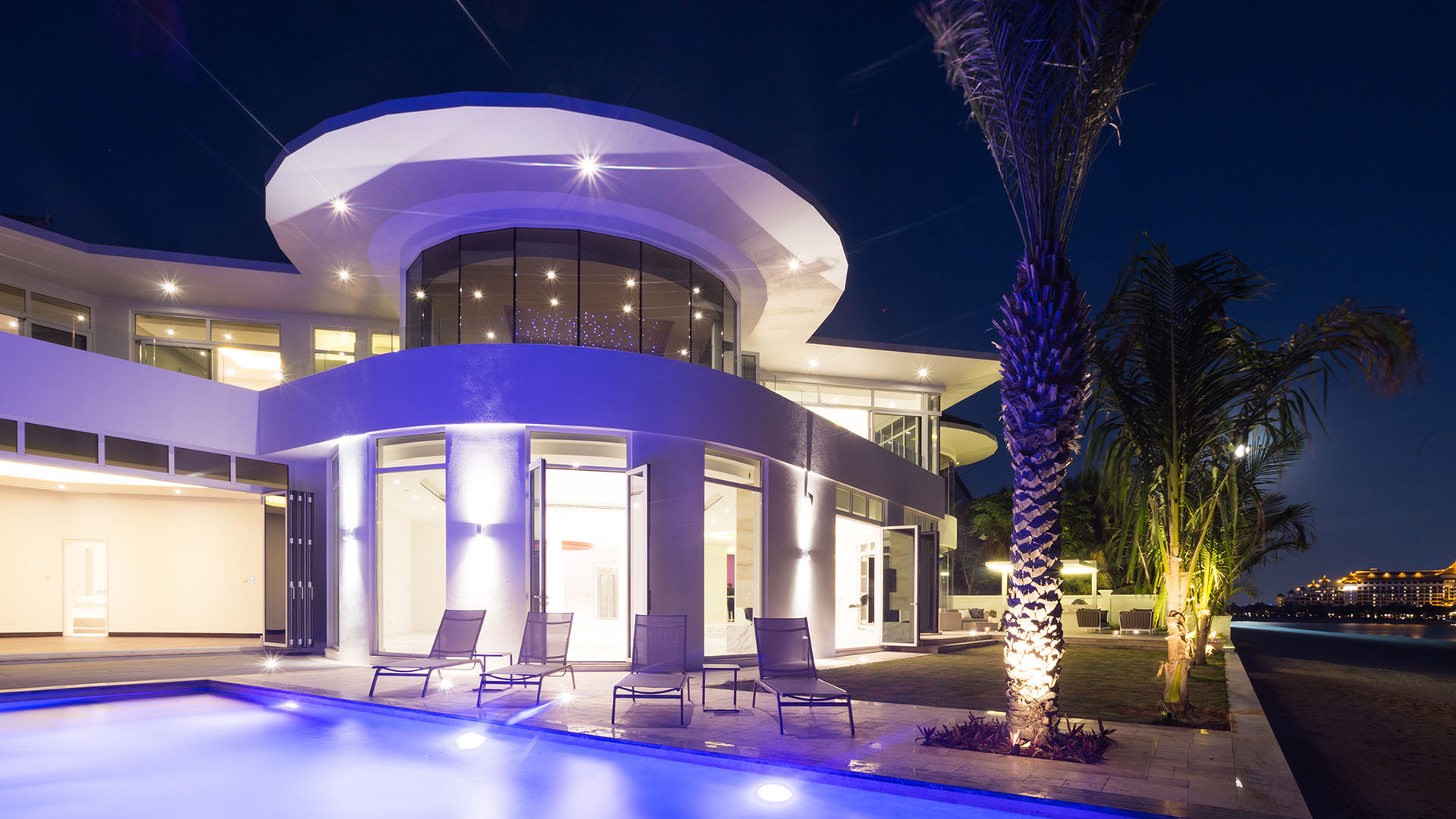

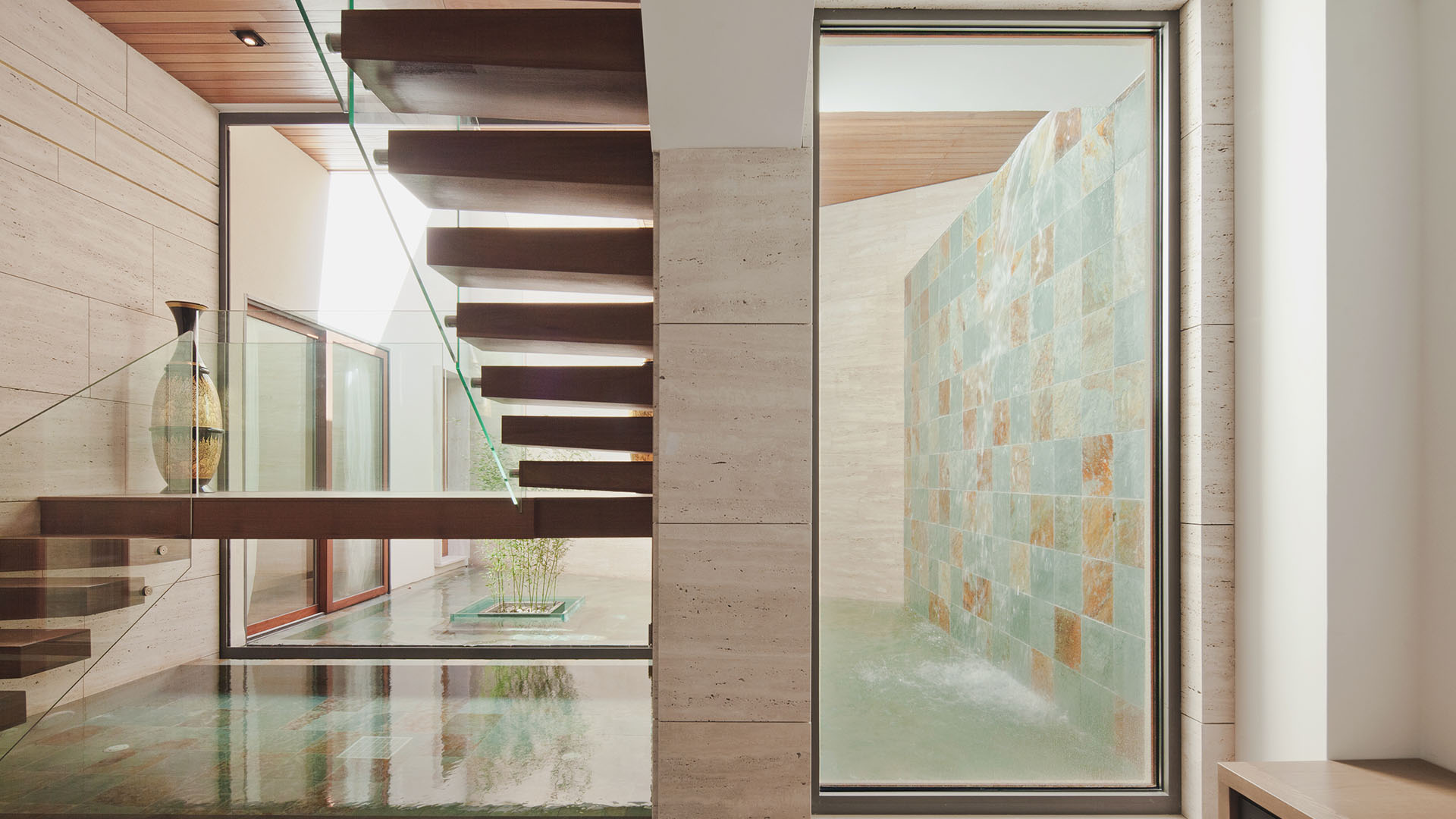

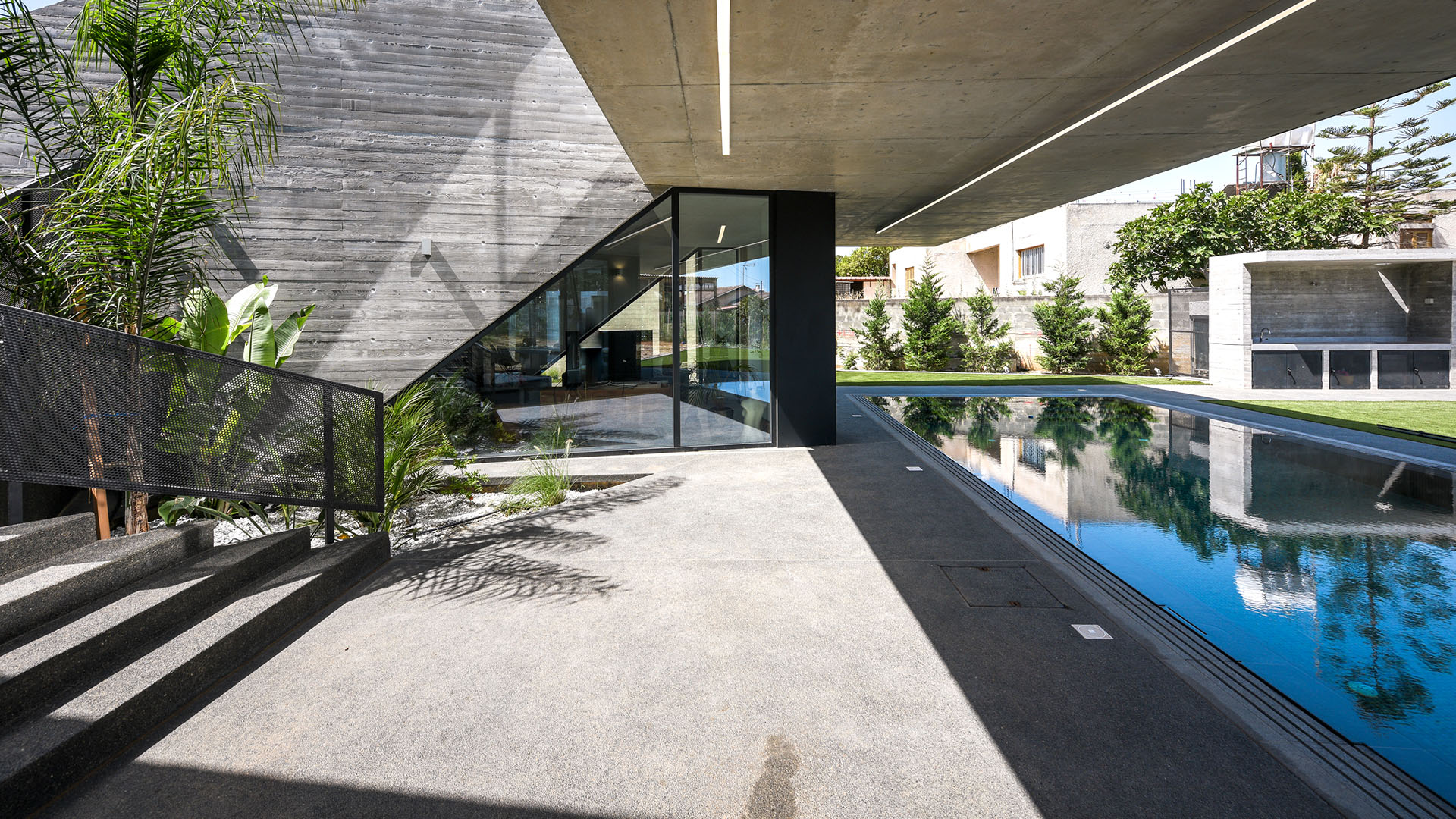

Projects
